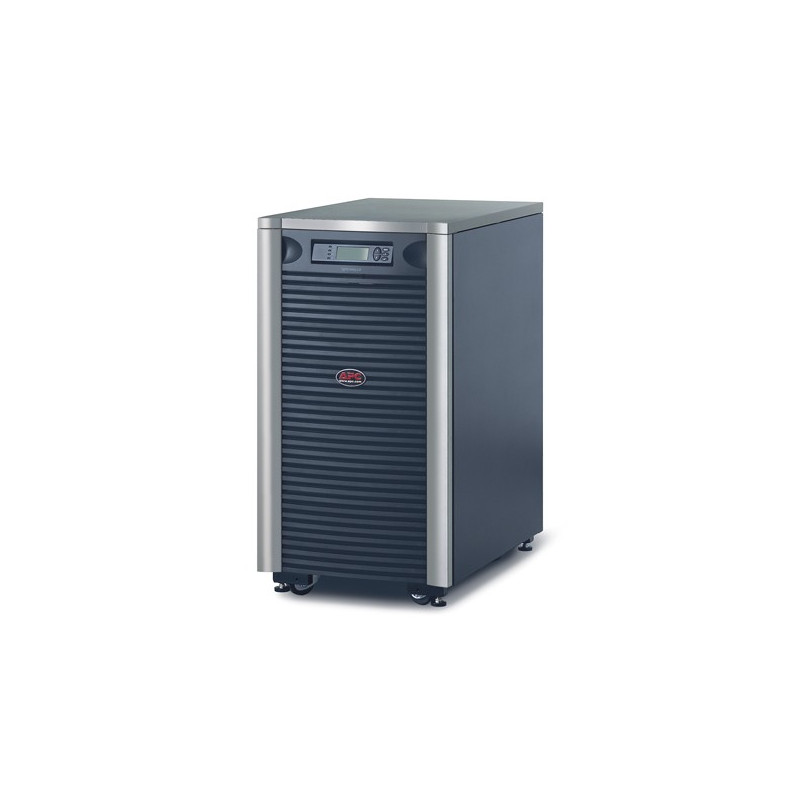

APC Symmetra LX, 11.2 kW / 16 kVA,Input 230V, 400V 3PH / Output 230V, Interface Port DB-9 RS-232, Smart-Slot, Extended runtime model.
Includes: CD with software, Documentation CD, Installation guide, User Manual, Web/SNMP Management Card.
Includes: CD with software, Documentation CD, Installation guide, User Manual, Web/SNMP Management Card.
| Battery recharge time | 3 h |
| Battery technology | Sealed Lead Acid (VRLA) |
| Certification | C-tick,CE,EN 50091-1,EN 50091-2,EN 55022 A,EN 55024,EN 60950,GOST,IEC 60950,VDE |
| Dimensions (WxDxH) | 483 x 726 x 937 mm |
| Input connection type | (1PH+N+G)/(3PH + N + G) |
| Interface | DB-9, RS-232 |
| Nominal output voltage | 230 V |
| Non-operating altitude | 0 - 4500 m |
| Operating altitude | 0 - 3000 m |
| Operating relative humidity range | 0 - 95 % |
| Operating temperature range (T-T) | 0 - 40 °C |
| Output connections | 1xHard Wire 3-wire (H N + G) |
| Output power | 11200 W |
| Output power capacity (VA) | 16000 VA |
| Output voltage note | 220-230/240 V |
| Package dimensions (WxDxH) | 599 x 997 x 1181 mm |
| Package weight | 337.73 kg |
| Replacement battery cartridge | SYBT5 |
| Storage relative humidity range | 0 - 95 % |
| Storage temperature range (T-T) | -15 - 45 °C |
| Typical backup time at full load | 7.5 min |
| Typical backup time at half load | 20.3 min |
| Weight | 307.73 kg |
