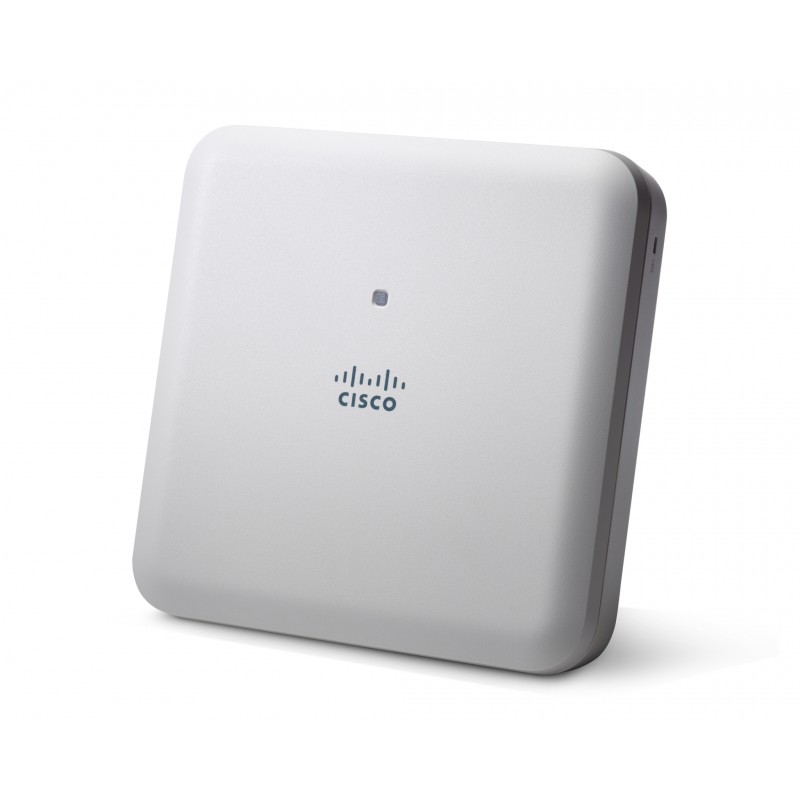

Cisco Aironet 1830
  • Cisco Aironet 1830
  • Cisco Aironet 1830
Most cost efficient 802.11ac Wave 2 Access Point. Onboard Controller function for up to 25 AP's. Fast-IT, set up an enterprise-class Wi-Fi network in under 10 minutes.



Small network, great solution



The Mobility Express Solution is ideal for small and medium-sized networks. The Cisco Aironet 1830 Series Access Point delivers industry-leading performance with enterprise-class 3x3 MIMO and three spatial streams. These support the IEEE’s new 802.11ac Wave 2 specification.



Extended support



The Aironet 1830 Series extends support to a new generation of Wi-Fi devices, such as smartphones, tablets and high-performance laptops that have integrated 802.11ac Wave 1 or Wave 2 support. It also optimizes support for legacy clients. The onboard controller supports up to 25 access points and 500 devices.



Specifications



Cisco Mobility Express is designed with a focus on simplicity and is perfect for small and medium-sized networks. It supports 25 access points and 500 devices and brings the quality of enterprise-class solutions to small and medium-sized businesses, without extra costs or complexity.



Flexible Wi-Fi deployment modes



Because of the flexible deployment modes, the Cisco Aironet 1830 Series is perfectly capable to provide employees with enterprise-class internet access.



Antennas



Integrated and external antenna models are available for various deployment environments.



25 access points



Do you have up to 25 access points? The Cisco Aironet 1830 Series offers a simple solution that does not need a separate controller.



Wireless technology with 802.11ac



The Cisco Aironet 1830 Series supports the latest wireless technology, namely 802.11ac Wave 2 (dual radio, 80 MHz channel width) and 3x3 Multi User MIMO. By using this latest Wi-Fi technology, you will improve your Wi-Fi coverage and performance.



MU-MIMO



The use of Multi User MIMO (MU-MIMO) increases the capacity of the Wi-Fi hotspot, which also improves client performance. MU-MIMO is obtained by two spatial streams, and is available for 802.11ac Wave 2-users.



- IEEE 802.11ac Wave 2.

- 3x3 MIMO with three spatial streams.

- Wireless throughput 1,084 Gbps (5 GHz: 867 Mbps and 2.4 GHz: 217 Mbps).

- Mobilty Express Solution, flexconnect (private cloud), centralized (controller based), converged access.

- Onboard controller for up to 25 AP's at no additional cost.
Antenna gain level (max)5 dBi
Antenna typeomni
Antennas quantity3
Channels quantity13
Colour of productWhite
Data transfer rate (max)1000 Mbit/s
Depth210.8 mm
Ethernet LAN (RJ-45) ports2
Ethernet LAN data rates10,100,1000 Mbit/s
Flash memory256 MB
Height50.8 mm
Input frequency50 - 60 Hz
Input voltage100 - 240 V
Internal memory1024 MB
Networking standardsIEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.1x,IEEE 802.3af,IEEE 802.3at
Non-operating altitude0 - 4572 m
Operating altitude0 - 3000 m
Operating relative humidity (H-H)10 - 90 %
Operating temperature (T-T)0 - 40 °C
Power consumption (typical)16 W
Receiver sensitivity802.11b (CCK)\n-101 dBm @ 1 Mbps\n-98 dBm @ 2 Mbps\n-92 dBm @ 5.5 Mbps\n-89 dBm @ 11 Mbps\n\n802.11g (non HT20)\n-96 dBm @ 6 Mbps\n-95 dBm @ 9 Mbps\n-94 dBm @ 12 Mbps\n-92 dBm @ 18 Mbps\n-88 dBm @ 24 Mbps\n-85 dBm @ 36 Mbps\n◦ -81 dBm @ 48 Mbps\n◦ -79
Security algorithms802.1x RADIUS,AES,TKIP,WPA,WPA2
Storage relative humidity (H-H)10 - 90 %
Storage temperature (T-T)-30 - 70 °C
USB 2.0 ports quantity1
WAN connectionEthernet (RJ-45)
Weight1410 g
Wi-Fi data rate (max)867 Mbit/s
Width210.8 mm

You might also like

  • Cat6a FTP RJ45 Modules with Faceplate
    Cat6a FTP RJ45 Modules with Faceplate
  • External Cat6 UTP PE Solid Cable
    External Cat6 UTP PE Solid Cable

Similar products

  • Cisco CBW140AC
    Cisco CBW140AC
  • Cisco 1.2GHz GainMaker
    Cisco 1.2GHz GainMaker
  • Cisco CBW140AC
    Cisco CBW140AC
  • Cisco 1.2GHz GainMaker
    Cisco 1.2GHz GainMaker
  • Cisco CBW240AC
    Cisco CBW240AC

Cisco Aironet 1830

Dual-band, Controller-Based 802.11a/g/n/ac, Wave 2

AIR-AP1832I-E-K9

Out of Stock

£690.08
£575.06 Ex VAT.
