TP-Link | Omada L2+ managed switches provide high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-ofService (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM and DDM functions help facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ managed Switches provide a reliable, secure solution for enterprise, campus and ISP networks.
| 10G support | No |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Cables included | LAN (RJ-45) |
| Depth | 180 mm |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Flow control support | Y |
| Form factor | 1U |
| Gigabit Ethernet (copper) ports quantity | 24 |
| Heat dissipation | 70.3 BTU/h |
| Height | 44 mm |
| LED indicators | Y |
| MAC address filtering | Y |
| MAC address table | 16000 entries |
| Management protocols | SNMPv1/v2c/v3, SNTP |
| MIB support | Yes |
| Networking standards | IEEE 802.3ab,IEEE 802.3i,IEEE 802.3u,IEEE 802.3z |
| Number of static routes | 48 |
| Number of VLANs | 4000 |
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | 0 - 45 °C |
| Packet buffer memory | 12 MB |
| Power over Ethernet (PoE) | No |
| Power source | AC |
| Quality of Service (QoS) support | Y |
| Quick start guide | Y |
| Rack mounting | Yes |
| Spanning tree protocol | Y |
| Storage relative humidity (H-H) | 5 - 90 % |
| Storage temperature (T-T) | -40 - 70 °C |
| Store-and-forward | Y |
| Switch layer | L2/L3 |
| Switch type | Managed |
| Switching capacity | 56 Gbit/s |
| Web-based management | Y |
| Width | 440 mm |
| Cloud-managed | Y |
| IPv4 routes | 48 |
| IPv6 routes | 48 |
sg3428.pdf
TP-Link Omada 24-Port Gigabit L2+ Managed Switch with 4 SFP Slots Data Sheet
Download (3.48M)You might also like
-
350mm Deep Wall Mounted 19" Frame
-
UK Socket / UK Plug Rack PDU
-
TP-Link AX1800 Gigabit Wi-Fi 6 Access Point
-
24 Way CCS Cat 5e Through Coupler Panel
-
Cage Nuts & Bolts - Pack of 50

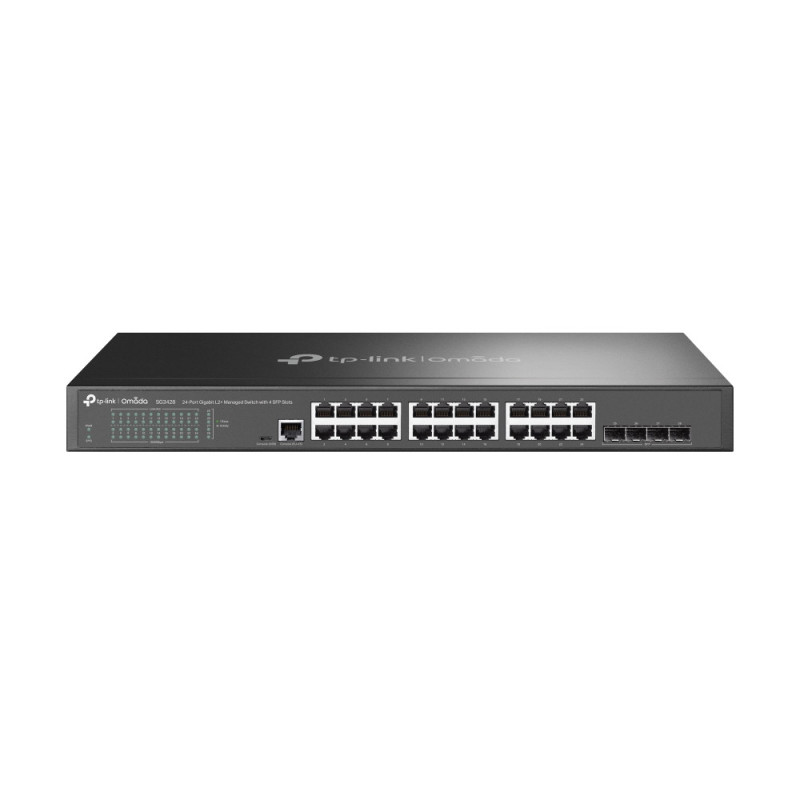

TP-Link Omada 24-Port Gigabit L2+ Managed Switch with 4 SFP Slots
24× 10/100/1000 Mbps RJ45, 4× 100/1000 Mbps SFP, RJ45/Micro-USB Console, 56Gbps, 8K MAC, 9KB Jumbo, 440×180×44 mm
sg3428
In Stock
£168.36
£140.30 Ex VAT.
