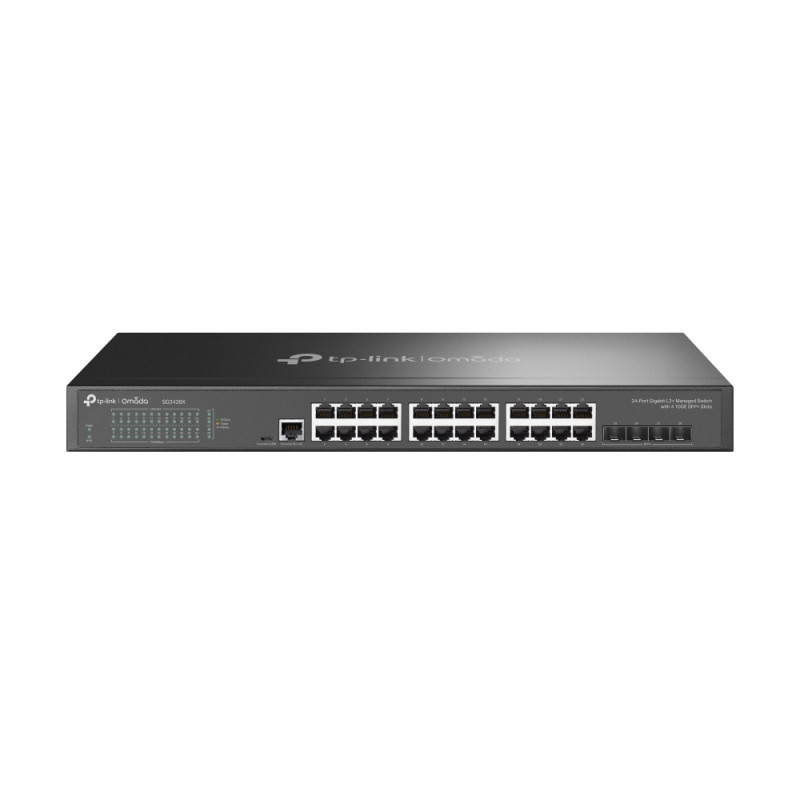

TP-Link Omada 24-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots
  • TP-Link Omada 24-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots
  • TP-Link Omada 24-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots
TP-Link | Omada L2+ managed switches provide high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The 10-gigabit ports ensure high-speed data transfer, and their backward compatility with gigabit products reserves room for network upgrades, therefore guarantees stable and long-term usability. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-of-Service (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM function helps facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ 10-gigabit managed switches provide a reliable, secure solution for enterprise, campus and ISP networks.
10G supportYes
AC input frequency50/60 Hz
AC input voltage100 - 240 V
Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Cables includedLAN (RJ-45)
Depth180 mm
Ethernet LAN data rates10,100,1000 Mbit/s
Flow control supportY
Form factor1U
Gigabit Ethernet (copper) ports quantity24
Heat dissipation80.52 BTU/h
Height44 mm
LED indicatorsY
MAC address table16000 entries
Management protocolsSNMPv1/v2c/v3, SNTP
MIB supportYes
Networking standardsIEEE 802.3ab,IEEE 802.3ae,IEEE 802.3i,IEEE 802.3u,IEEE 802.3z
Number of static routes48
Number of VLANs4000
Operating relative humidity (H-H)10 - 90 %
Operating temperature (T-T)0 - 45 °C
Packet buffer memory12 MB
Power over Ethernet (PoE)No
Power sourceAC
Quality of Service (QoS) supportY
Quick start guideY
Rack mountingYes
Spanning tree protocolY
Storage relative humidity (H-H)5 - 90 %
Storage temperature (T-T)-40 - 70 °C
Store-and-forwardY
Switch layerL2+/L3
Switch typeManaged
Switching capacity128 Gbit/s
Web-based managementY
Width440 mm
FanlessY
Cloud-managedY
IPv4 routes48
IPv6 routes48

sg3428x.pdf

TP-Link Omada 24-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots Data Sheet

Download (13.02M)

TP-Link Omada 24-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots

24× 10/100/1000 Mbps RJ45, 4× 10G SFP+, 1× RJ45 Console Port, 1× Micro-USB, 128 Gbps, 95.23 Mpps, 16 K MAC, Jumbo Frame 9 KB, 440 × 180 × 44 mm

sg3428x

In Stock

£281.25
£234.38 Ex VAT.
