10G support | Yes |
AC input frequency | 50/60 Hz |
AC input voltage | 100 - 240 V |
Basic switching RJ-45 Ethernet ports quantity | 24 |
Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
Cables included | LAN (RJ-45) |
Certification | CE, FCC, RoHS |
Depth | 180 mm |
Flow control support | Y |
Form factor | 1U |
Heat dissipation | 154.38 BTU/h |
Height | 44 mm |
LED indicators | Y |
MAC address table | 32000 entries |
Management protocols | SNMP v1/v2c/v3, SNTP |
MIB support | Yes |
Networking standards | IEEE 802.1x,IEEE 802.3ab,IEEE 802.3ae,IEEE 802.3bz,IEEE 802.3i,IEEE 802.3u,IEEE 802.3z |
Number of static routes | 48 |
Operating relative humidity (H-H) | 10 - 90 % |
Operating temperature (T-T) | 0 - 40 °C |
Packet buffer memory | 16 MB |
Power over Ethernet (PoE) | No |
Power source | AC |
Quality of Service (QoS) support | Y |
Quick start guide | Y |
Rack mounting | Yes |
Spanning tree protocol | Y |
Storage relative humidity (H-H) | 5 - 90 % |
Storage temperature (T-T) | -40 - 70 °C |
Store-and-forward | Y |
Switch layer | L2+ |
Switch type | Managed |
Switching capacity | 200 Gbit/s |
Web-based management | Y |
Width | 440 mm |
Cloud-managed | Y |
IPv4 routes | 48 |
IPv6 routes | 48 |
IPv4 FIB entries | 100 |
IPv6 FIB entries | 100 |
2.5G Ethernet (copper) ports quantity | 24 |
Compliance certificates | CE,Federal Communications Commission (FCC),RoHS |

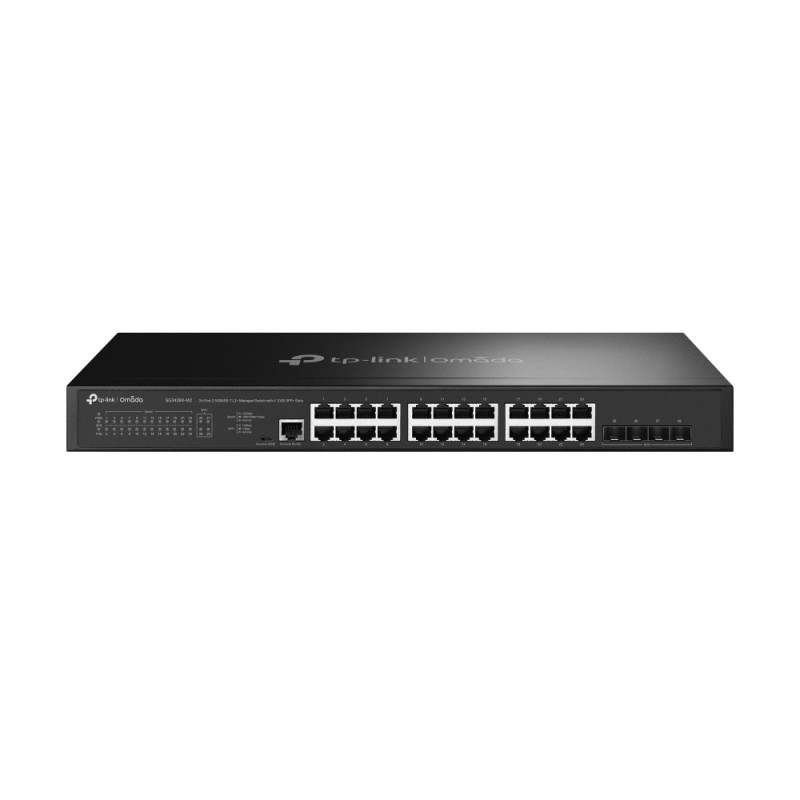

TP-Link Omada 24-Port 2.5GBASE-T L2+ Managed Switch with 4 10GE SFP+ Slots Data Sheet
Download (13.02M)
