Please Note, this product is not for consumer use in the European Union.

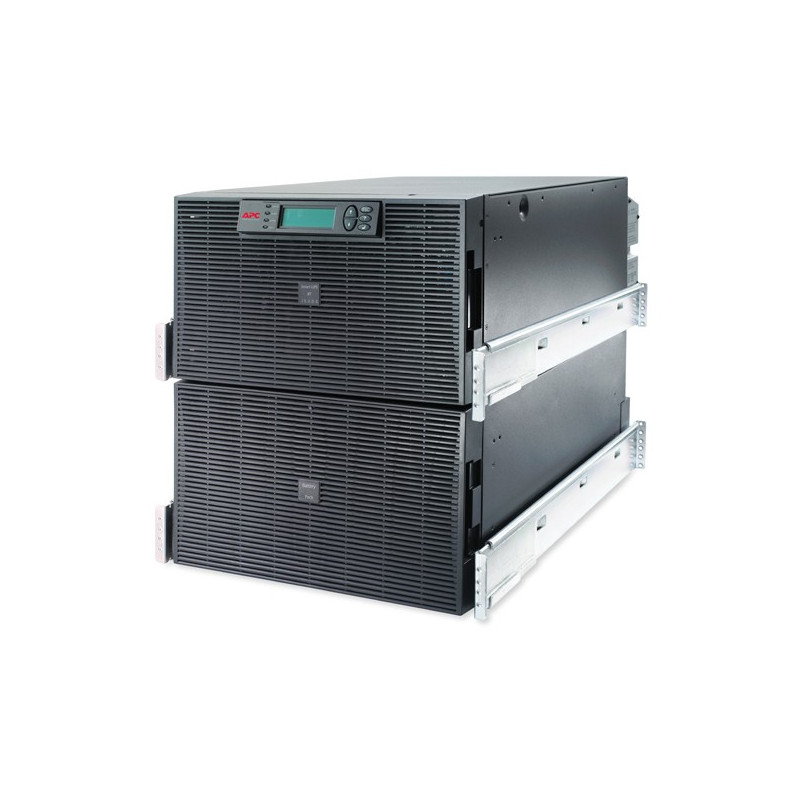

APC Smart-UPS RT, 12 kW / 15 kVA,Input 230V / Output 230V, Interface Port DB-9 RS-232, RJ-45 10/100 Base-T, Smart-Slot, Extended runtime model, Rack Height 12 U.Battery recharge time | 2.5 h |
Battery technology | Sealed Lead Acid (VRLA) |
Certification | EN/IEC 62040-2,EN/IEC 62040-1-1,VDE |
Colour of product | Black |
Dimensions (WxDxH) | 432 x 773 x 533 mm |
Ethernet LAN (RJ-45) ports quantity | 1 |
Interface | DB-9 RS-232, RJ-45 10/100 Base-T,Smart-Slot |
Noise level | 50 dB |
Nominal input voltage | 230 V |
Nominal output voltage | 230 V |
Non-operating altitude | 0 - 15000 m |
Operating altitude | 0 - 3000 m |
Operating relative humidity range | 0 - 95 % |
Operating temperature range (T-T) | 0 - 40 °C |
Output connections | (1) Hard Wire 3-wire (H N + G), (1) Hard Wire 5-wire (3PH + N + G), (8) IEC 320 C19 |
Output power | 12000 W |
Output power capacity (VA) | 15000 VA |
Output voltage note | 230/240 V |
Package dimensions (WxDxH) | 610 x 1003 x 990 mm |
Package weight | 314090 g |
Power supply input frequency | 40/70 Hz |
Replacement battery cartridge | RBC44 |
Serial ports quantity | 1 |
Source data-sheet | Icecat.biz |
Storage relative humidity range | 0 - 95 % |
Storage temperature range (T-T) | -15 - 45 °C |
Typical backup time at full load | 8.3 min |
Typical backup time at half load | 22.4 min |
Weight | 247730 g |
