Wrap Around System Bypass
(3) Breaker maintenance bypass panel to isolate the UPS from the critical loa.
- APC Smart-UPS Accessories , Input: 200V, 208V, 220V, 230V, 240V, 380V 3PH, 400V 3PH
- Input Connections: Hard Wire 3-wire (2PH + G), Hard Wire 3 wire (1PH+N+G), Hard Wire 5-wire (3PH + N + G)
- Output: 200V, 208V, 220V, 230V, 240V
- Output Connections: Hard Wire 3-wire (2PH + G), Hard Wire 3-wire (H N + G)
(3) Breaker maintenance bypass panel to isolate the UPS from the critical loa.
- APC Smart-UPS Accessories , Input: 200V, 208V, 220V, 230V, 240V, 380V 3PH, 400V 3PH
- Input Connections: Hard Wire 3-wire (2PH + G), Hard Wire 3 wire (1PH+N+G), Hard Wire 5-wire (3PH + N + G)
- Output: 200V, 208V, 220V, 230V, 240V
- Output Connections: Hard Wire 3-wire (2PH + G), Hard Wire 3-wire (H N + G)
| Colour of product | Black |
| Depth | 554 mm |
| Form factor | Tower |
| Input operation voltage (max) | 240 V |
| Input operation voltage (min) | 200 V |
| Maximum current | 125 A |
| Non-operating altitude | 0 - 15000 m |
| Operating altitude | 0 - 4500 m |
| Operating relative humidity range | 0 - 95 % |
| Operating temperature range (T-T) | -20 - 50 °C |
| Output power capacity (VA) | 20000 VA |
| Package dimensions (WxDxH) | 610 x 845 x 305 mm |
| Package weight | 31360 g |
| Power supply input frequency | 50/60 Hz |
| Source data-sheet | Icecat.biz |
| Storage relative humidity range | 0 - 95 % |
| Storage temperature range (T-T) | -40 - 65 °C |
| Weight | 19320 g |
| Width | 432 mm |
Similar products
-
APC 60kW 400V MAIN SERV. BYPASS PANEL
-
APC 80KW 400V MAIN SERV. BYPASS PANEL
-
APC SY16K48H-PD
-
APC Symmetra PX 32kW Scalable to 160kW, 400V
-
APC SY32K48H-PD
APC SBP20KP

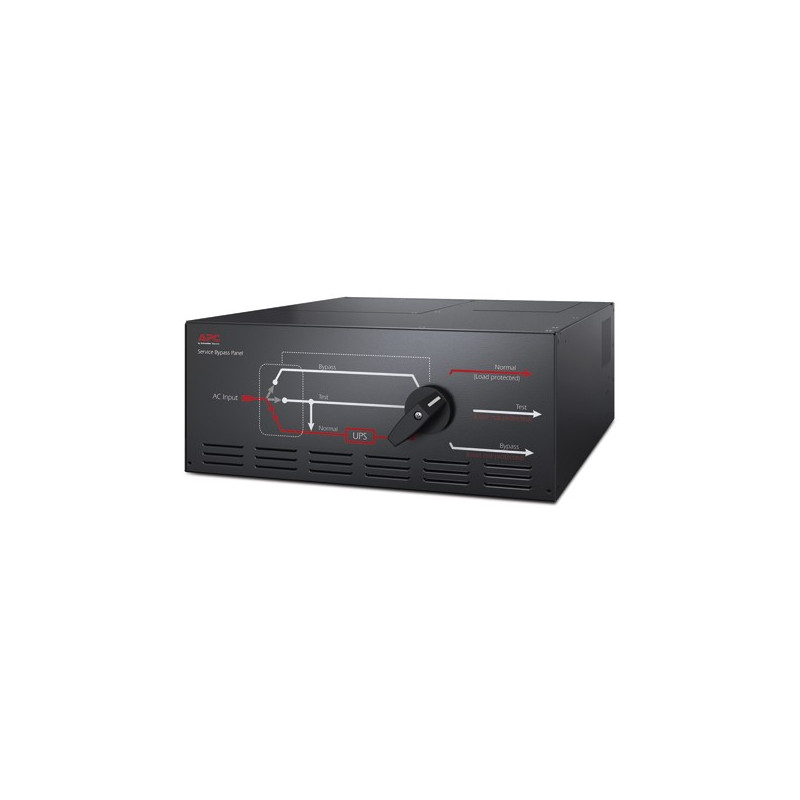

Service Bypass Panel, 400V (3PH + N + G), 19.32 kg, Black
SBP20KP
Out of Stock
£1,933.80
£1,611.50 Ex VAT.
