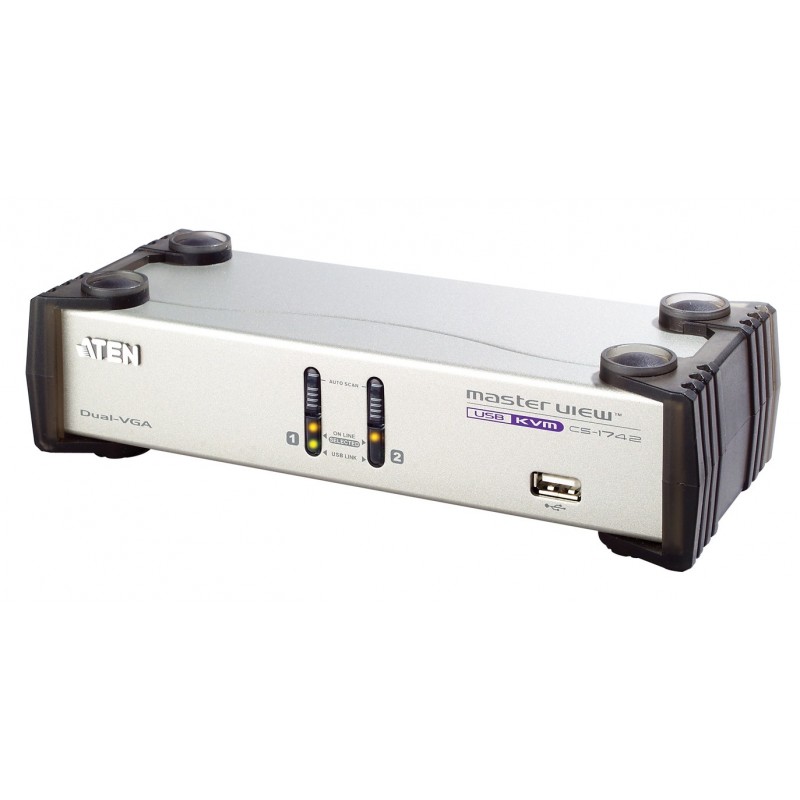

Aten CS1742 2-Port USB Dual-View KVMP™ Switch
  • Aten CS1742 2-Port USB Dual-View KVMP™ Switch
  • Aten CS1742 2-Port USB Dual-View KVMP™ Switch
  • Aten CS1742 2-Port USB Dual-View KVMP™ Switch
Features



- Allows one USB keyboard, USB mouse, speakers, microphone and two displays to control two dual display computers

- 2 port USB Hub built in

- Multiplatform support: compatible with all operation platforms PC (Windows, Linux and most others), Mac and Sun

- With speaker and microphone support

- Bi-directional switching and flexible interoperability; switch permits independent PC, independent peripheral, and independent audio function, regardless of KVM switch focus

- Buzzer On/Off via hotkey

- Keyboard and mouse emulation for error free booting

- Computer selection via front panel pushbuttons and hotkeys

- Superior video quality - up to 2048 x 1536; DDC2B

- Firmware upgradeable

- SUN/Mac keyboard support and emulation*

*1.PC keyboard combinations emulate SUN/Mac keyboards.

*2.SUN/Mac keyboards only work with their own computers.



Package Contents



- 1x 2-Port USB Dual-View KVMP™ Switch

- 2x 2L-5202A-1 KVM Cable (Audio/Video)

- 2x 2L-5202U USB KVM Cables (USB/Video)

- 1x UC20KMZ-A-11 USB-to-PS/2 Converter

- 1x Firmware Upgrade Cable

- 1x User Instructions
Case or master carton dimensions (W x D x H)320.7 x 292.1 x 248.4 mm
Colour of productWhite
Connectivity technologyWired
Dimensions (WxDxH)75 x 200 x 42 mm
I/O ports2 x USB Type A Female 2 X HDB15 Female 1 x Audio 1 x Earphone Jack Female 1 x Microphone Jack Female 1 x RJ11 Socket
Keyboard port typeUSB
Mouse port typeUSB
Operating temperature (T-T)0 - 50 °C
Operating temperature range (T-T)0 - 50 °C
Package dimensions (WxDxH)222.2 x 98.4 x 266.7 mm
Package height266.7 mm
Package weight2176.8 g
Package width222.2 mm
Packaging depth98.4 mm
Packaging height266.7 mm
Packaging width222.2 mm
Ports quantity2
Power consumption (typical)1.25 W
Power requirementsDC 5V
Source data-sheetIcecat.biz
Storage temperature (T-T)-20 - 60 °C
Storage temperature range (T-T)-20 - 60 °C
Video port typeVGA
Weight1600 g

Similar products

  • Aten CS1732B
    Aten CS1732B
  • Aten CS1734B
    Aten CS1734B
  • Aten CS1744
    Aten CS1744
  • Aten CS1762A
    Aten CS1762A

Aten CS1742

2-Port USB Dual-View VGA KVM Switch with Audio & USB 2.0 Hub (KVM cables included)

CS1742

Stock Due 05-06-2025

£163.68
£136.40 Ex VAT.

Require project pricing? - request a quoteNeed a trade account? - send us your details Are you a public sector organistion? - open a credit account
