Axis M1124-E
  • Axis M1124-E
  • Axis M1124-E

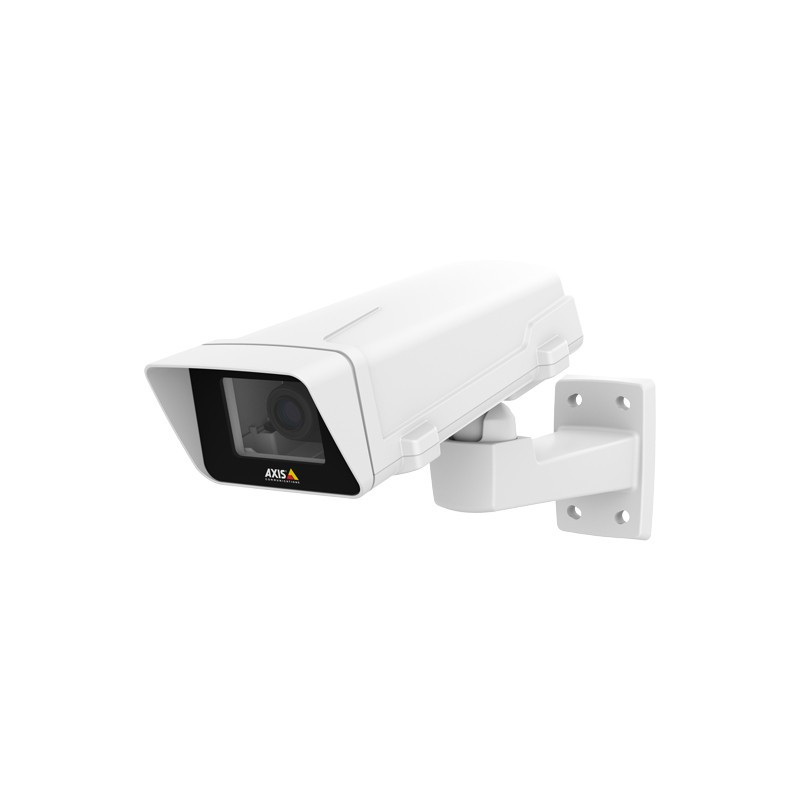

AXIS M1124-E offers a professional and affordable fixed camera suitable for a wide range of video surveillance applications, such as for retail and banking as well as libraries and other office buildings. It can be used indoors, as well as in an outdoor housing.



Outdoor-ready video surveillance



The outdoor-ready camera provides IP66- and NEMA 4X-rated as well as IK10-rated protection. The camera can withstand a temperatures range of -20 °C to 50°C (-4 °F to 122 °F).



Images optimized for forensic analysis



Supporting WDR - Forensic Capture capability, the video is highly optimized for forensic purposes and provides extreme levels of detail – even in scenes with very complex light conditions. Thanks to the automatic IR-cut filter, AXIS M1124-E can deliver images both day and night. Furthermore, the network camera includes the ability to seamlessly transition between WDR and low-light mode.



More video, less storage



AXIS M1124-E incorporates Axis’ Zipstream technology, which is a radically more efficient H.264 implementation, lowering bandwidth and storage requirements by an average 50% or more for many common 24/7 surveillance use cases.
Built-in hard driveNo
Cabling technology10/100Base-T(X)
Camera shutter speed0.000006993 - 2 s
Card reader integratedYes
CertificationNEMA4X\nIK10
Colour of productWhite
Compatible memory cardsmicroSD (TransFlash), microSDHC, microSDXC
Compliance industry standardsPoE IEEE 802.3af
Connectivity technologyWired
Day/night modeYes
DC-in jackYes
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Focal length range (f-f)3 - 10.5 mm
Form factorbox
Frame rate30 fps
Height137 mm
HTTPS encryptionYes
InterfaceRJ-45
Internal memory512 MB
International Protection (IP) codeIP66
IP address filteringYes
LED indicatorsYes
Maximum resolution1280 x 720 pixels
Megapixel1 MP
Minimum illumination0.05 lx
Mounting typeWall
Operating temperature (T-T)-20 - 50 °C
Optical sensor size1/2.8 "
Password protection typeUser
Placement supportedOutdoor
Power consumption (typical)3.6 W
Power over Ethernet (PoE) supportYes
Progressive scanYes
Sensor typeCMOS
Supported graphics resolutions160 x 90, 1280 x 720 (HD 720)
Supported network protocolsIPv4/v6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMP v1/v2c/v3 (MIB - II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RT CP ICMP, DHCP, ARP SOCKS, SSH
TypeIP
Video formats supportedH.264, M-JPEG
Video motion detectionYes
Viewing angle, horizontal91 °
Viewing angle, vertical49 °
Web-based managementYes
Weight1600 g
White balanceAuto
Wi-FiNo

Similar products

  • Axis F1005-E
    Axis F1005-E
  • Axis M1125-E
    Axis M1125-E
  • Axis F1004
    Axis F1004
  • Axis P1435-LE
    Axis P1435-LE

Axis M1124-E

IP, Outdoor, RGB CMOS 1/2.8", 1MP, 1280x720, 512 MB RAM, 256 MB Flash, Digital PTZ, WDR, 10BASE-T/100BASE-TX PoE, microSD/microSDHC/microSDXC, IP66, NEMA 4X, IK10

0748-001

Out of Stock

£436.10
£363.42 Ex VAT.
