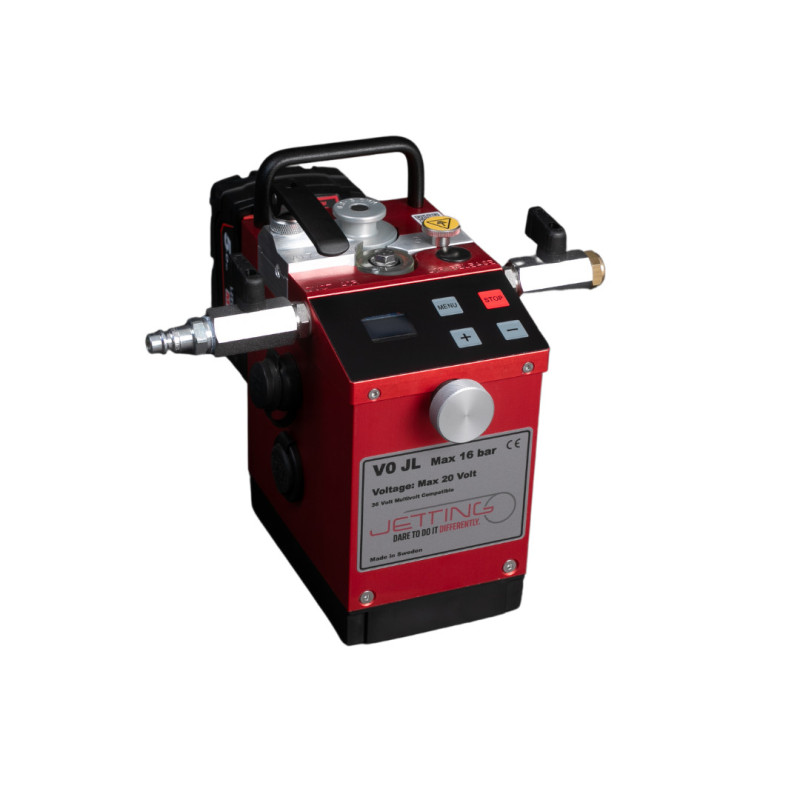

The V0 Fibre Blowing Machine is an extremely compact electrically operated fibre blowing machine optimised for FTTx installation of blown fibre (EPFU) and micro/nano cables, from 0.8 to 6mm into duct from 3 to 16mm. A full digital control system with soft- start, electronic fibre security, memory functions, combined with high speed possibility makes the machine very easy and effective to use. Can be operated directly from its case.

Features & Benefits

• Electrically operated, battery connected, optional power supply
• Allows installation in a larger duct with a smaller compressor
• Electronic stopping/slipping protection within 250ms
• Gentle operation, reduced cable pull with the aid of continuously variable pushing force
• Forward and reverse function
• Display for current speed, distance, pushing force pressure and duct air temp
• Stepless pushing force on cable up to: 60N
• Adjustable clamping force
• Works with electronic documentation system (JetLogger)
• 110/240V Power supply (No need to charge or change batteries)
• Table bracket - For safe installation on working table
• Metal drive wheel for <2.5mm cable
• Softstart: Enables an even smoother start protecting the fiber
• Memory: The last inserted data like pushing force will stay in the memory even if the device will be switched off or the battery need to be exchanged
• Service info: Memory of total milage/distance since the machine was taken into operation
• Duct air temp: Display showing the air temperature injected into the duct
