Cable type | Cat 5 up to 100m |
Cabling technology | 10/100/1000BaseT(X) |

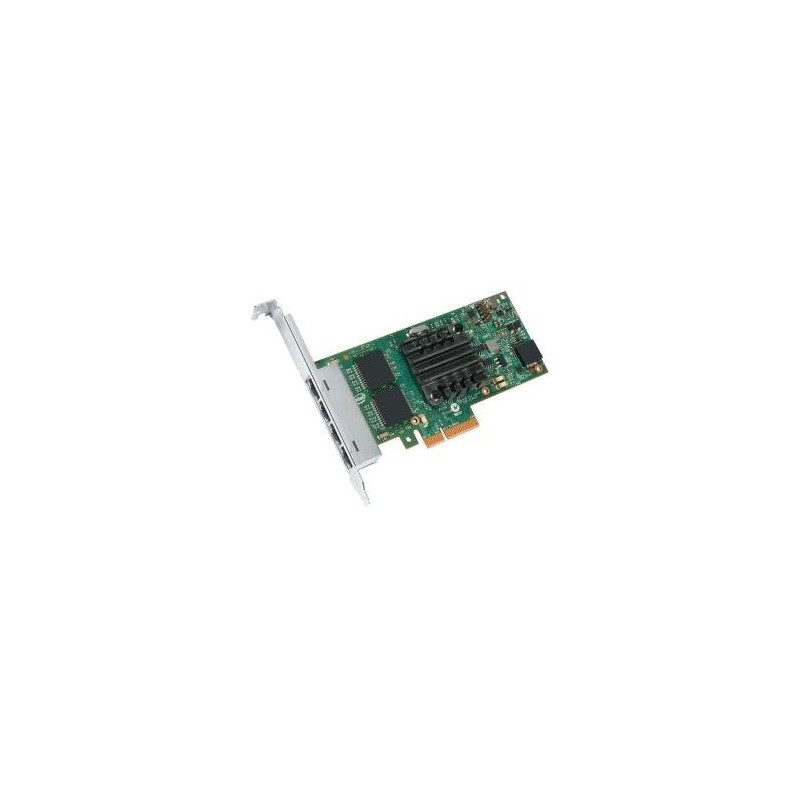

Chipset | Intel I350 |
Compatibility | Server |
Compatible operating systems | Windows Server 2012 R2*, Windows Server 2012*, Windows 8*, Windows Server 2008 R2*, Windows 7*, Windows Server 2008*, Windows Vista*, Windows Server 2003 R2*, Windows Server 2003*, Windows XP Professional, Linux* Stable Kernel version 3.x, 2.6,x, Red Hat |
Connectivity technology | Wired |
Data transfer rate (max) | 1000 Mbit/s |
Depth | 135.4 mm |
Ethernet LAN | Yes |
Ethernet LAN (RJ-45) ports | 4 |
Ethernet LAN data rates | 10,100,1000 Mbit/s |
Full duplex | Yes |
Host interface | PCI-E |
Interface | Ethernet |
Interface type | PCIe v2.1 (5.0GT/s) |
Internal | Yes |
Maximum operating distance | 100 m |
Networking standards | IEEE 802.1as,IEEE 802.1Q,IEEE 802.3,IEEE 802.3ab,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z |
Operating temperature (T-T) | 0 - 55 °C |
Power consumption (typical) | 5 W |
Storage relative humidity (H-H) | 35 - 90 % |
Storage temperature (T-T) | -40 - 70 °C |
Supported network protocols | TCP, UDP, IP |
Width | 68.9 mm |
