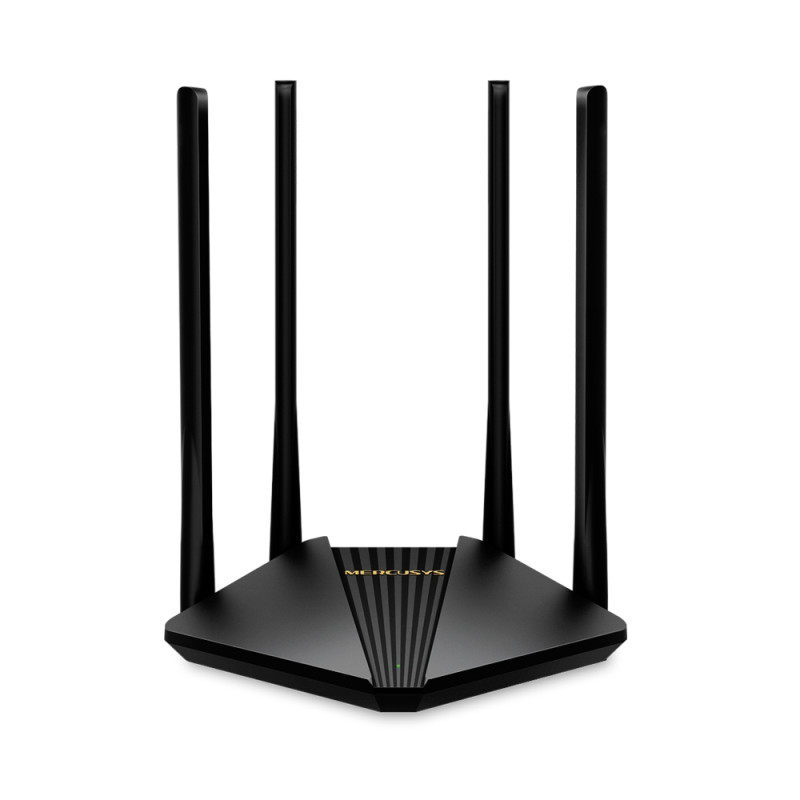

Mercusys AC1200 Wireless Dual Band Gigabit Router
  • Mercusys AC1200 Wireless Dual Band Gigabit Router
  • Mercusys AC1200 Wireless Dual Band Gigabit Router
  • Mercusys AC1200 Wireless Dual Band Gigabit Router
  • Mercusys AC1200 Wireless Dual Band Gigabit Router
  • Mercusys AC1200 Wireless Dual Band Gigabit Router
  • Mercusys AC1200 Wireless Dual Band Gigabit Router
Live Your Digital Life at Gigabit Speed
AC1200 Wireless Dual Band Gigabit Router

AC1200 Gigabit Speeds
Dual Band WiFi Delivers Fast Connections for All Devices
Complying with the powerful 802.11ac standard, MR30G delivers blazing-fast WiFi speeds up to 1.2 Gbps. Choose the 2.4 GHz band (300 Mbps) that transmits signals with better wall penetration for longer distance as you browse the internet, email a colleague, or share a link on social media. When you’re streaming HD videos, gaming, or other bandwidth-intensive tasks, choose the 5 GHz band (867 Mbps) which delivers higher speeds with less interference

High-Gain Antennas with Beamforming
Targeted Signals that Penetrate Walls
Four external 5 dBi high-gain antennas with well-designed internal structures greatly increase transmission performance, covering more rooms. Advanced Beamforming technology automatically locates wireless devices and forms targeted, highly efficient wireless connections, making your connections more stable.

Powerful Signal Amplifiers
Strong WiFi Signals Throughout Your Home
MR30G unleashes the full potential of your network by strengthening signal transmissions with power amplifiers, and accelerating signal capture with low-noise amplifiers. This means your home WiFi has improved range and full-signal strength for every device.

Gigabit Wired Speeds
Full Gigabit Ports for PCs, IPTVs, and Game Consoles
Equipped with full gigabit ports which are 10× faster than Ethernet ports, MR30G transfers data at dizzying speeds for peak performance. Connect your PCs, IPTVs, and game consoles to MR30G for robust stability.

Easily Manage Your Home Network

Parental Controls
Establish appropriate policies to protect children for responsible, safe internet access

Guest Network
Allows guests to join your WiFi network—all while protecting your privacy—making sharing easy and secure

Quality of Service
Prioritizes devices you select to perform better

Multi-Mode for Flexible Application Scenarios

Router Mode
Creates a wireless network for all your WiFi devices

Access Point Mode
Extends a wired network and makes it wireless

Simple Setup
No Need to Call for Help
Simply follow the step-by-step instructions on the intuitive webpage to get set up in minutes. No complicated configuration required.
3GN
AC adapter includedY
Antenna gain level (max)5 dBi
Antennas quantity4
Cables includedLAN (RJ-45)
Cabling technology10/100/1000Base-T(X)
DC-in jackY
Depth125.9 mm
DHCP clientY
DHCP serverY
Ethernet LANY
Ethernet LAN (RJ-45) ports3
Ethernet LAN data rates10,100,1000 Mbit/s
External power adapterY
FirewallY
Firewall securitySPI Firewall, IP/MAC Address Binding
Height37.1 mm
LED indicatorsStatus
NAT functionalityPort Forwarding, Port Triggering, UPnP, DMZ
Operating relative humidity (H-H)10 - 90 %
Operating temperature (T-T)0 - 40 °C
Quick installation guideY
Receiver sensitivity11g 6Mbps: -96dBm 11g 54Mbps: -78dBm 11n HT40 MCS7: -74dBm 11n HT20 MCS7: -71dBm 11a 6Mbps: -97dBm 11a 54Mbps: -79dBm 11ac VHT20 MCS8: -74dBm 11ac VHT40 MCS9: -70dBm 11ac VHT80 MCS9: -65dBm
Reset buttonY
Security algorithmsWPA-PSK,WPA2-PSK
Storage relative humidity (H-H)5 - 90 %
Supported network protocolsPPPoE/L2TP/PPTP
USB portN
Web-based managementY
Wi-Fi standards802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac)
Width159.7 mm
Ethernet WANY
WLAN data transfer rate (max)1167 Mbit/s
DSL WANN
SIM card slotN
3G/4G USB modem compatibilityN
WLAN data transfer rate (first band)300 Mbit/s
WLAN data transfer rate (second band)867 Mbit/s
Antenna includedY
MU-MIMO technologyY
5GN
Antenna designExternal

mr30g.pdf

Mercusys AC1200 Wireless Dual Band Gigabit Router Data Sheet

Download (933.27k)

Similar products

  • TP-LINK TL-WR841N
    TP-LINK TL-WR841N
  • TP-LINK TL-MR3020
    TP-LINK TL-MR3020
  • TP-LINK AC1200 Wrls Dual Band Router
    TP-LINK AC1200 Wrls Dual Band Router
  • TP-LINK AX1500 Wi-Fi 6 Router
    TP-LINK AX1500 Wi-Fi 6 Router
  • TP-LINK ARCHER AX11000
    TP-LINK ARCHER AX11000

Mercusys AC1200 Wireless Dual Band Gigabit Router

AC1200, 867 Mbps (5 GHz) + 300 Mbps (2.4 GHz), 1× Gigabit WAN Port + 2× Gigabit LAN Ports, 159.7 x 125.9 x 37.1 mm

mr30g

In Stock

£41.51
£34.59 Ex VAT.
