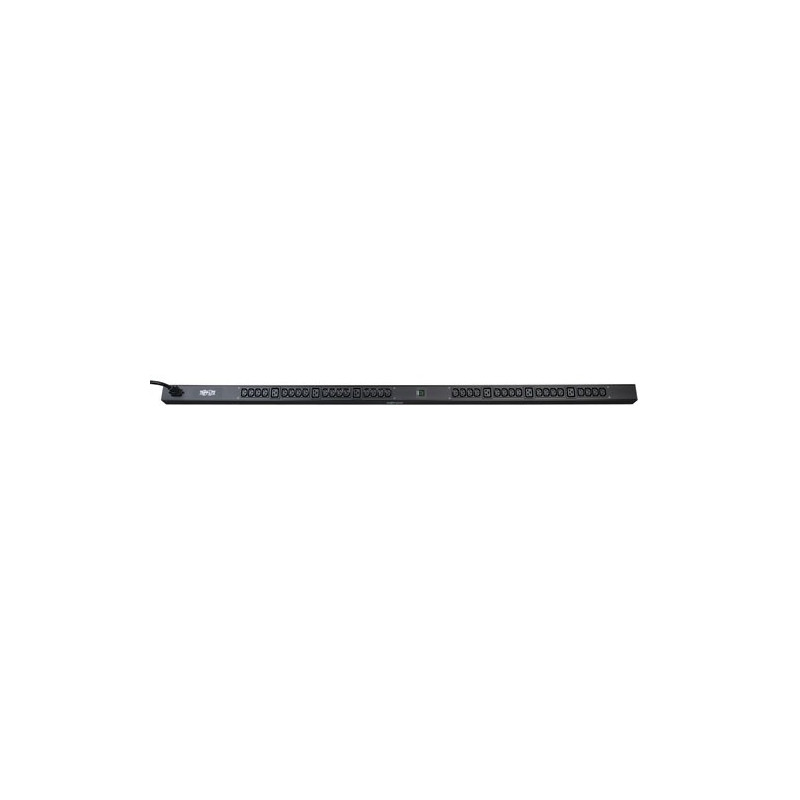

Tripp Lite single phase Metered PDU / Power Distribution Units offer real-time local reporting of load level in amps via built-in digital display. Enables visual monitoring of PDU load levels to prevent overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories. Included C20 and C14 plug-lock inserts connect to your components’ plugs to ensure they remain connected and continuously powered.

● 16/20A single phase 200-240V Metered Power Distribution Unit / PDU (Agency derated to 16A continuous)

● Two-digit lighted meter reports combined total output current in amps

● 3m detachable input cable with NEMA L6-20P plug

● C20 inlet accepts a variety of 16A international cordsets

● 0U 63.75in / 162cm vertical rackmount format installs using no rack spaces

● 38 total outlets (6 C19, 32 C13)

● Included plug-lock inserts ensure components remain connected and powered

● Toolless installation supported in button-mount compatible equipment racks

● Bolt-down installation brackets support installation in other racks and additional surfaces

● Metered single phase 16/20A 200-240V 0U 63.75in / 162cm vertical rackmount PDU

● Two-digit meter reports output current in amps

● 3m detachable input cable with NEMA L6-20P plug

● C20 inlet accepts a variety of 16A international cordsets

● 38 output receptacles (6 C19, 32 C13)

● Ready for immediate toolless 0U installation



Package Includes



● PDUMV20HV 1.61 m basic PDU

● Plug-lock inserts (6 C20, 32 C13)

● Spare installation buttons, 2.9 mm/4.6 mm

● 3.05 m detachable C19-to-L620P input cordset

● Mounting hardware

● Owner’s Manual
