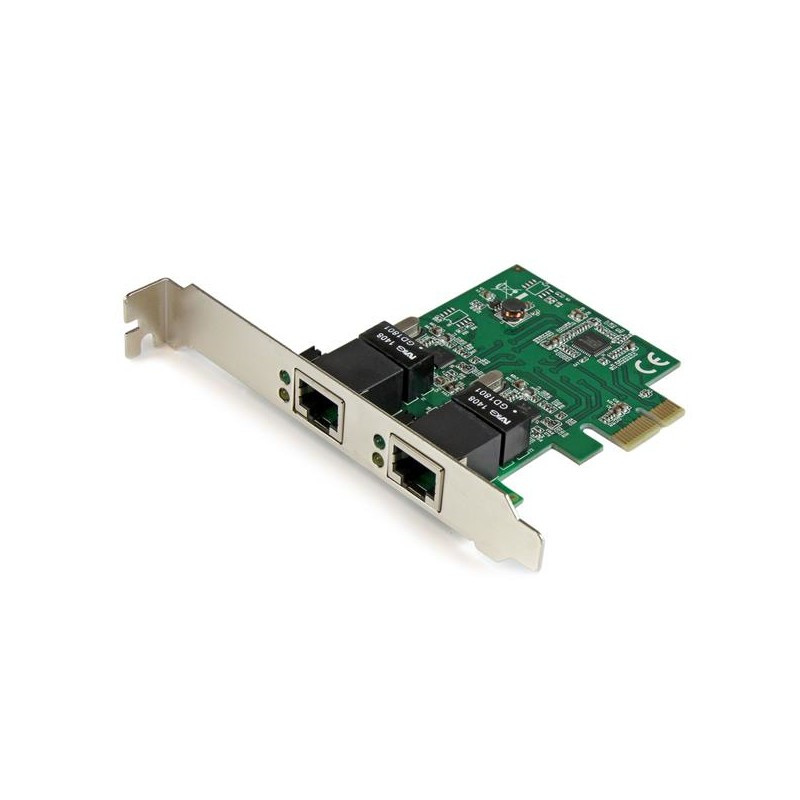

Dual Port Gigabit PCI Express Server Network Adapter Card - PCIe NIC
  • Dual Port Gigabit PCI Express Server Network Adapter Card - PCIe NIC
  • Dual Port Gigabit PCI Express Server Network Adapter Card - PCIe NIC
  • Dual Port Gigabit PCI Express Server Network Adapter Card - PCIe NIC
  • Dual Port Gigabit PCI Express Server Network Adapter Card - PCIe NIC
  • Dual Port Gigabit PCI Express Server Network Adapter Card - PCIe NIC
The ST1000SPEXD4 PCI Express Dual-Port Gigabit Network Card lets you add two gigabit Ethernet ports to a client, server or workstation through a single PCIe slot. Each port provides 10/100/1000 Mbps capable Ethernet and is fully compatible with IEEE 802.3/u/ab standards.



Suitable for any standard PCI Express-enabled system, the 2-port Ethernet card supports full-duplex flow control for maximum data transfer speeds of up to 2000 Mbps - an ideal 2-port NIC for setting up dual-homed, or multi-homed host configurations providing added security to corporate networks.



The dual-port server adapter is compliant with the PCIe 2.0 standard and features support for Jumbo Frames and 802.1q VLAN tagging as well as Wake on LAN (WoL). The adapter includes an optional low-profile / half-height bracket that can be used for installation into a standard or small form-factor computer chassis.



Backed by a StarTech.com 2-year warranty and free lifetime technical support.



The StarTech.com Advantage

- Protect critical networked systems with a redundant and independent Gigabit port

- Optimize network traffic with support for advanced features such as Jumbo Frames and VLAN tagging

- Maximize the networking efficiency of your virtualized server, with dedicated ports
Cabling technology10/100/1000BaseT(X)
CertificationCE, FCC
ChipsetRealtek - RTL8111E, Asmedia - ASM1182E
Connectivity technologyWired
Data transfer rate (max)2000 Mbit/s
Depth92.6 mm
Ethernet interface typeGigabit Ethernet
Ethernet LANYes
Ethernet LAN (RJ-45) ports2
Flow control supportYes
Full duplexYes
Height120 mm
Host interfacePCI-E
InterfaceEthernet
InternalYes
LED indicatorsActivity,Link
Linux operating systems supportedYes
Mac operating systems supportedMac OS X 10.10 Yosemite,Mac OS X 10.4 Tiger,Mac OS X 10.5 Leopard,Mac OS X 10.6 Snow Leopard,Mac OS X 10.7 Lion,Mac OS X 10.8 Mountain Lion,Mac OS X 10.9 Mavericks
ManualYes
Networking standardsIEEE 802.1Q,IEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x
Operating relative humidity (H-H)10 - 90 %
Operating temperature (T-T)0 - 70 °C
Package height30 mm
Package weight133 g
Package width142 mm
RoHS complianceYes
Storage temperature (T-T)0 - 100 °C
Weight51 g
Width18 mm
Windows operating systems supportedWindows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 2000,Windows 2000 Professional,Windows 7 Enterprise,Windows 7 Enterprise x64,Window

Similar products

  • StarTech.com 1 Port PCI Express PCIe Gigabit Network Server Adapter NIC Card - Dual Profile
    StarTech.com 1 Port PCI Express PCIe...
  • StarTech.com Dual Port PCI Express Gigabit Ethernet PCIe Network Card Adapter - PoE/PSE
    StarTech.com Dual Port PCI Express Gigabit...
  • StarTech.com USB31000NDS network card & adapter
    StarTech.com USB31000NDS network card...
  • StarTech.com USB 3.0 to Gigabit Ethernet Adapter NIC w/ USB Port - Black
    StarTech.com USB 3.0 to Gigabit Ethernet...
  • StarTech.com USB 150Mbps Mini Wireless N Network Adapter - 802.11n/g 1T1R USB WiFi Adapter - White
    StarTech.com USB 150Mbps Mini Wireless N...

StarTech.com Dual Port Gigabit PCI Express Server Network Adapter Card - PCIe NIC

StarTech.com Dual Port Gigabit PCI Express Server Network Adapter Card - 1 Gbps PCIe NIC - Dual Port Server Adapter - 2 Port Ethernet Card

ST1000SPEXD4

In Stock

£110.23
£91.86 Ex VAT.
