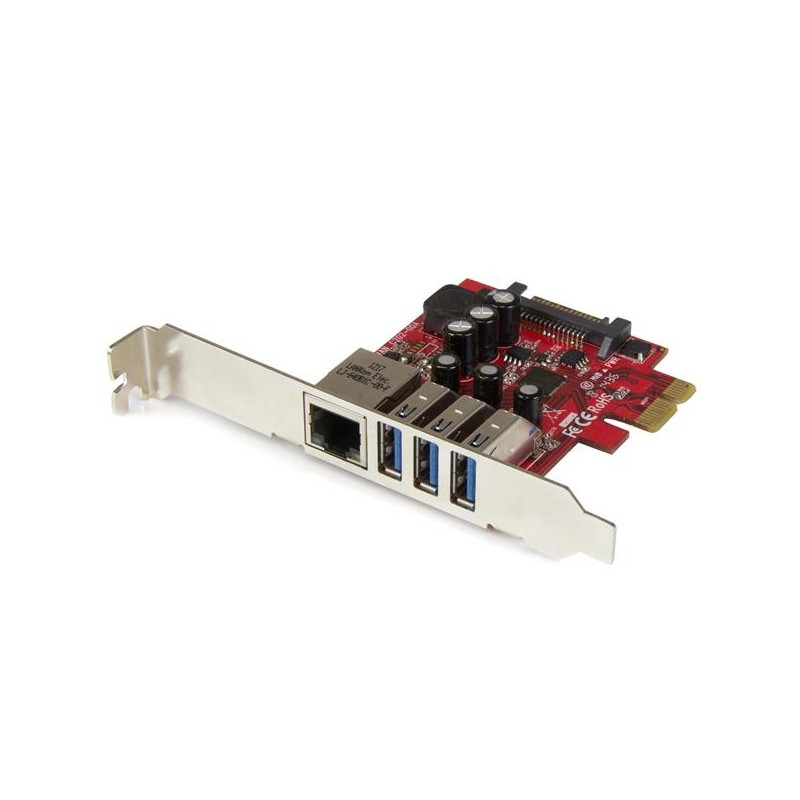

3-port PCI Express USB 3.0 card + Gigabit Ethernet
  • 3-port PCI Express USB 3.0 card + Gigabit Ethernet
  • 3-port PCI Express USB 3.0 card + Gigabit Ethernet
  • 3-port PCI Express USB 3.0 card + Gigabit Ethernet
  • 3-port PCI Express USB 3.0 card + Gigabit Ethernet
  • 3-port PCI Express USB 3.0 card + Gigabit Ethernet
This PCIe USB 3.0 card couples your peripheral and network connections into a single, scalable solution.



By combining three USB 3.0 ports and one RJ45 port onto a single card, you only need a single PCIe slot for installation, which lets you free up space for other add-ons or upgrades and get more out of your desktop or server.



Combo-card convenience and cost-savings

If you have separate cards for your USB and network connections, this versatile card overcomes the aggravation of running out of PCIe slots while helping to reduce clutter inside your PC.



This dual-purpose card is perfect for building or upgrading your computer. It helps you save money by avoiding the additional costs of purchasing separate USB 3.0 and Gigabit Ethernet adapters.



Flexible install options and legacy device support

You can rest assured this card will fit in your small form-factor system, if needed. It features a dual-profile design that makes it easy to install in either standard or low-profile cases.



The combo card makes it easy to connect peripherals such as your external hard drives or mobile devices. Plus, it’s backward compatible with USB 2.0 and 1.x, so you won’t have to replace all of your existing USB devices.



Gigabit connectivity and network management

Functioning as a network adapter, the card delivers wired network access in locations where Wi-Fi® is unavailable or unreliable.



Support for advanced features such as jumbo frames and VLAN tagging means you can optimize network traffic as needed.



Effective USB 3.0 performance enhanced by UASP

This high-performance SuperSpeed USB 3.0 adapter card supports data transfer rates up to 5 Gbps and is enhanced with UASP support, which can perform ~70% faster read speed and 40% faster write speed over traditional USB 3.0, when paired with a UASP-enabled enclosure.



The PEXUSB3S3GE is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Cabling technology10/100/1000BaseT(X)
CertificationCE, FCC
ChipsetRenesas / NEC - µPD720201, Realtek - RTL8153
Colour of productMetallic,Red
Connectivity technologyWired
Data transfer rate (max)5000 Mbit/s
Depth77 mm
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100,1000 Mbit/s
Flow control supportYes
Full duplexYes
Height120 mm
Host interfacePCI-E
InterfaceEthernet
InternalYes
LED indicatorsActivity,Link
Linux operating systems supportedYes
ManualYes
Mean time between failures (MTBF)1920042 h
Networking standardsIEEE 802.1p,IEEE 802.1Q,IEEE 802.3,IEEE 802.3ab,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x
Operating relative humidity (H-H)20 - 80 %
Operating temperature (T-T)5 - 50 °C
Package height30 mm
Package weight150 g
Package width170 mm
RoHS complianceYes
Storage temperature (T-T)-25 - 70 °C
USB version3.0 (3.1 Gen 1)
Weight60 g
Width18 mm
Windows operating systems supportedWindows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64
