APC EPDU1232B
  • APC EPDU1232B
  • APC EPDU1232B
  • APC EPDU1232B
  • APC EPDU1232B
  • APC EPDU1232B

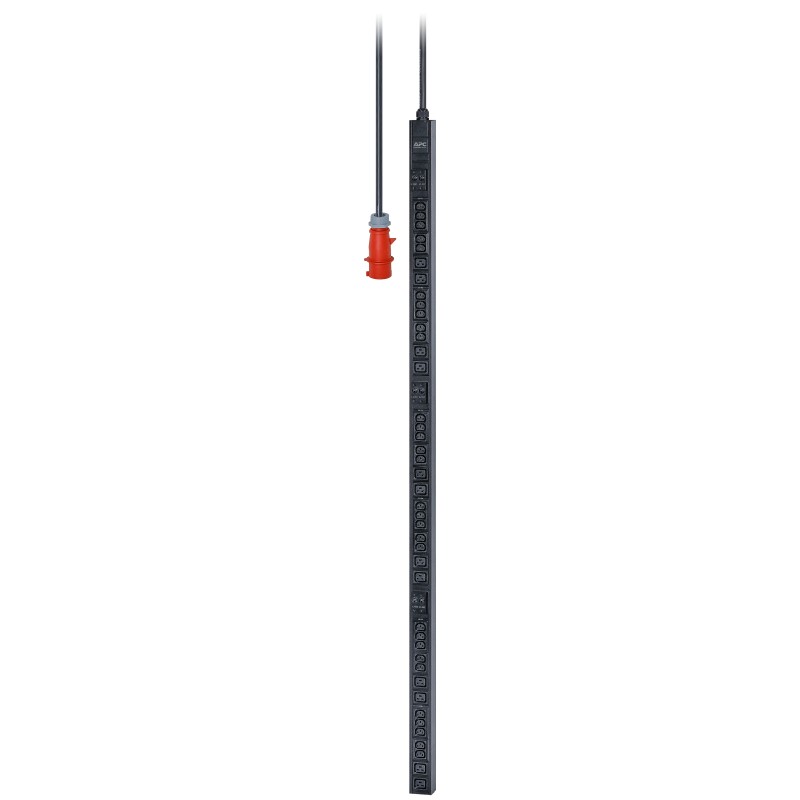

Easy Basic PDU provide reliable rack power distribution units (PDU) that offer more than a power strip for server rack and network rack solutions.Resettable circuit breakers Enables a quick recovery from overload events.Toolless Rack Mounting Capabilities Server cases do not require additional tools to mount into NetShelter Enclosures, which allows the users to quickly and easily mount units in the rear of the enclosure.Zero U Rack Mounting Abilities Vertical mounting capabilities allow users to mount the units in a rack or enclosure without expending valuable rack space.AgilityRack-Mountable Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.Wide range of input and output connections Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.Single input power source Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.Cost SavingsLow Cost Power Distribution Provides a number of outlets to bring power to rack equipment at an affordable price.
AC input frequency50/60 Hz
AC outlet typesC13 coupler,C19 coupler
AC outlets quantity42 AC outlet(s)
Cable length2 m
CertificationCE, TÜV
Depth44 mm
Height1794 mm
Load capacity22000 VA
ManualY
Maximum current32 A
Maximum input current per phase32 A
Mountingvertical
Nominal input voltage400 V
Nominal output voltage230 V
Non-operating altitude0 - 15000 m
Operating altitude0 - 3000 m
Operating relative humidity (H-H)5 - 95 %
Operating temperature (T-T)-5 - 45 °C
Package height1950 mm
Package weight6200 g
Package width160 mm
PDU typesBasic
Power plugIEC 60309
Rack capacity0U
Storage relative humidity (H-H)5 - 95 %
Storage temperature (T-T)-25 - 65 °C
TypeThree-phase
Weight5140 g
Width62 mm

Similar products

  • APC Basic Rack PDU AP7526
    APC Basic Rack PDU AP7526
  • APC Basic Rack PDU
    APC Basic Rack PDU
  • APC Basic Rack PDU
    APC Basic Rack PDU
  • APC Rack PDU. Basic. Zero u. 32a. 230v. (20)c13 & (4)c19
    APC Rack PDU. Basic. Zero u. 32a. 230v....
  • APC Basic Rack PDU
    APC Basic Rack PDU

APC EPDU1232B

EPDU1232B, Zero U, 32A, 230V, 30x C13, 12x C19, 1794x62x44 mm, Black

EPDU1232B

Out of Stock

£838.75
£698.96 Ex VAT.
