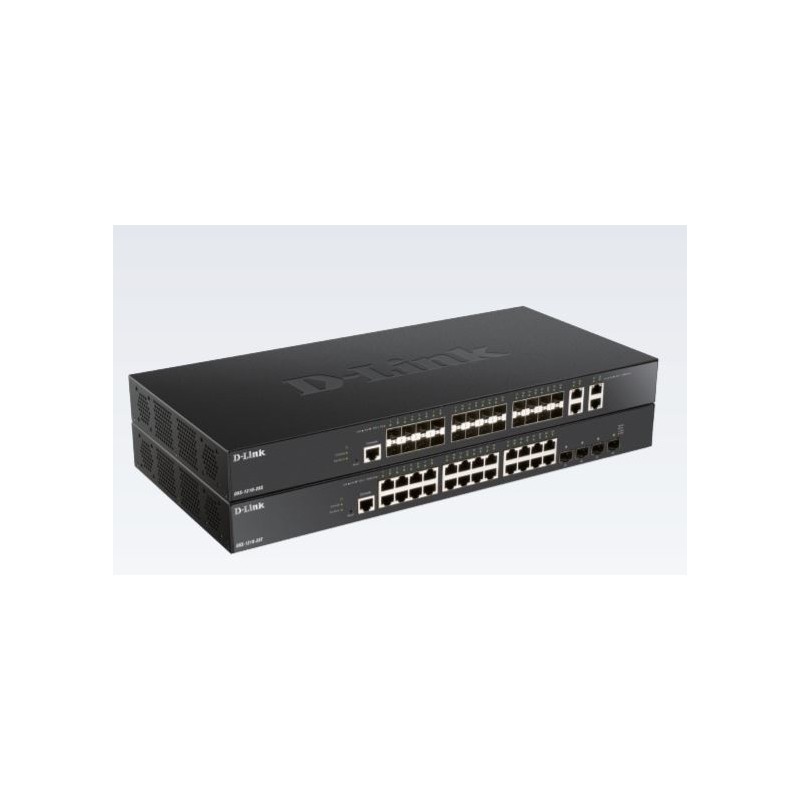

The DXS-1210-28T/28S 10 Gigabit Ethernet Smart Managed Switches are a cost-effective 10

Gigabit switches capable of servicing a range of network needs in any business environment.

The DXS-1210-28T is equipped with 4 x 10/25G SFP28 ports, enabling this series to serve as

either an aggregation/access switch in large enterprise environments or deployed at the

core of an SMB network. With high performance and low latency, these 10G smart-managed

switches fulfil the needs of virtualisation, cloud services, and server-to-server applications.

The DXS-1210-28T/28S comes with a complete line-up of L2 features, including port mirroring,

Spanning Tree Protocol (STP), and Link Aggregation Control Protocol (LACP). At the same time,

inter-VLAN static routing helps by reducing the pressure of routers and backbone networks,

improving overall network efficiency. The free D-Link Network Assistant utility allows multiple

D-Link devices within the same L2 network to be discovered and managed. These switches also

provide management through the multi-lingual web UI, a full command-line interface (CLI)

through Telnet, a console port, as well as D-View 7 Network Management System.

10G support	Yes
AC input voltage	100 - 240 V
Auto MDI/MDI-X	Y
Basic switching RJ-45 Ethernet ports quantity	4
Basic switching RJ-45 Ethernet ports type	10G Ethernet (100/1000/10000)
Cable types supported	Cat6,Cat6a,Cat7
Certification	CE Class A\nFCC Class A\nVCCI Class A\nIC\nBSMI
Depth	209.5 mm
Flow control support	Y
Form factor	1U
Height	44 mm
LED indicators	Activity,Link,Speed
MAC address table	32000 entries
Management protocols	SNMP v1/v2c/v3
Manual	Y
Networking standards	IEEE 802.3ab,IEEE 802.3ae,IEEE 802.3an,IEEE 802.3az,IEEE 802.3u,IEEE 802.3z
Number of VLANs	4094
Operating relative humidity (H-H)	0 - 95 %
Operating temperature (T-T)	-5 - 50 °C
Power over Ethernet (PoE)	No
Quality of Service (QoS) support	Y
Rack mounting	Yes
Spanning tree protocol	Y
Storage relative humidity (H-H)	0 - 95 %
Storage temperature (T-T)	-20 - 70 °C
Store-and-forward	Y
Switch type	Managed
Switching capacity	560 Gbit/s
Throughput	416.64 Mpps
Web-based management	Y
Weight	3270 g
Width	441 mm
