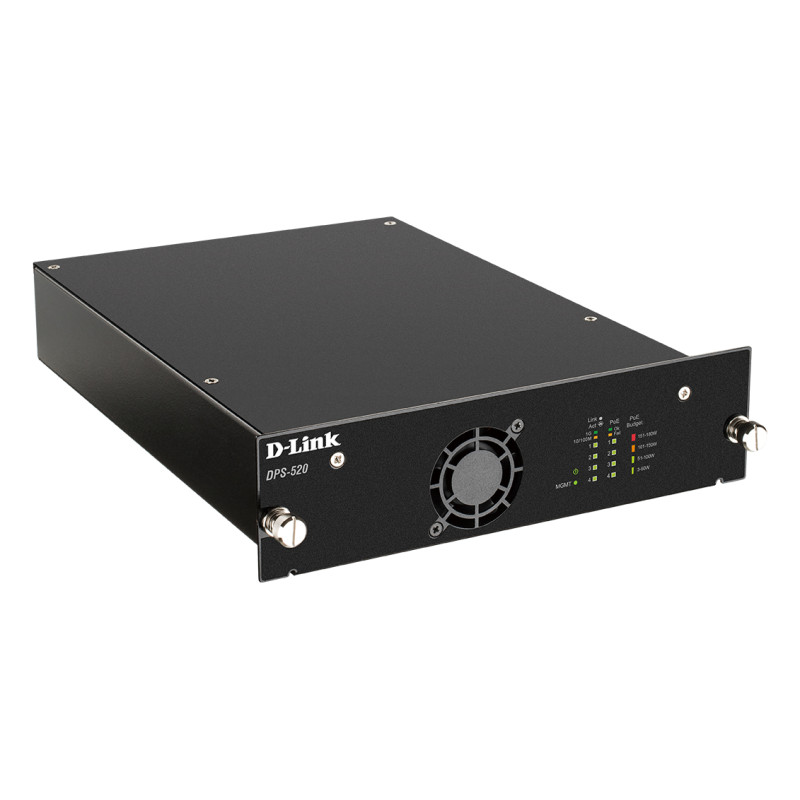

D-Link 180W Redundant Power Supply DPS‑520
  • D-Link 180W Redundant Power Supply DPS‑520
  • D-Link 180W Redundant Power Supply DPS‑520
  • D-Link 180W Redundant Power Supply DPS‑520
  • D-Link 180W Redundant Power Supply DPS‑520
  • D-Link 180W Redundant Power Supply DPS‑520
  • D-Link 180W Redundant Power Supply DPS‑520
  • D-Link 180W Redundant Power Supply DPS‑520
Stay protected against power failures.
The DPS-520 offers uninterrupted operation for up to x4 D-Link switches and in the event of a power failure, it will be immediately activated, allowing your business to stay operational.

High Flexibility and Availability
Connect devices at distances of up to 100m

PoE Capable
Up to 180 W PoE output through PoH

Cost-Effective Solution
Supply 4 devices with redundant power with a single RPS

Auto discovery
Automatically detect PD (powered device) to deliver immediate power

RPS Port Priority
Allows the network administrator to define RPS failover policy

Power Redundancy
Provide power redundancy to network switches (non-PoE models)

Status Reporting
Monitor status and backup a failed switch via web browser

Flexible Deployment
Any standard Category 5e or higher Ethernet cable can be used to connect the RPS to the switch, allowing the RPS to supply PoH power to the switch with up to 100m connection distance.

Simple Installation
The DPS-520 is compatible with DGS-1520-28 and DGS-1520-52 and can be installed as a standalone power supply unit or onto a standard mounted switch rack by inserting it into an optional DPS-800 open chassis, designed to hold x2 DPS-520 RPS units.

Connect to the RPS with a standard CAT-5e cable with a connection distance of up to 100m.

Status Reporting
Switch status information can be monitored through any web browser with our comprehensive tool, allowing administrators to backup a failed switch.
AC adapter input voltage90 - 264 V
Depth257 mm
Ethernet interface typeFast Ethernet,Gigabit Ethernet
Ethernet LAN data rates10,100,1000 Mbit/s
Height52 mm
Input current2 A
LED indicatorsY
Maximum operating distance100 m
Operating relative humidity (H-H)10 - 90 %
Operating temperature (T-T)0 - 50 °C
Power over Ethernet (PoE)Yes
Power protection featuresOver current
Rack mountingYes
RJ-45 output ports4
Storage relative humidity (H-H)5 - 90 %
Storage temperature (T-T)-40 - 70 °C
Web-based managementY
Weight1150 g
Width196 mm
Harmonized System (HS) code85044095

dps-520.pdf

D-Link 180W Redundant Power Supply DPS‑520 Data Sheet

Download (792.87k)
