More Info
Details
Spec Sheet

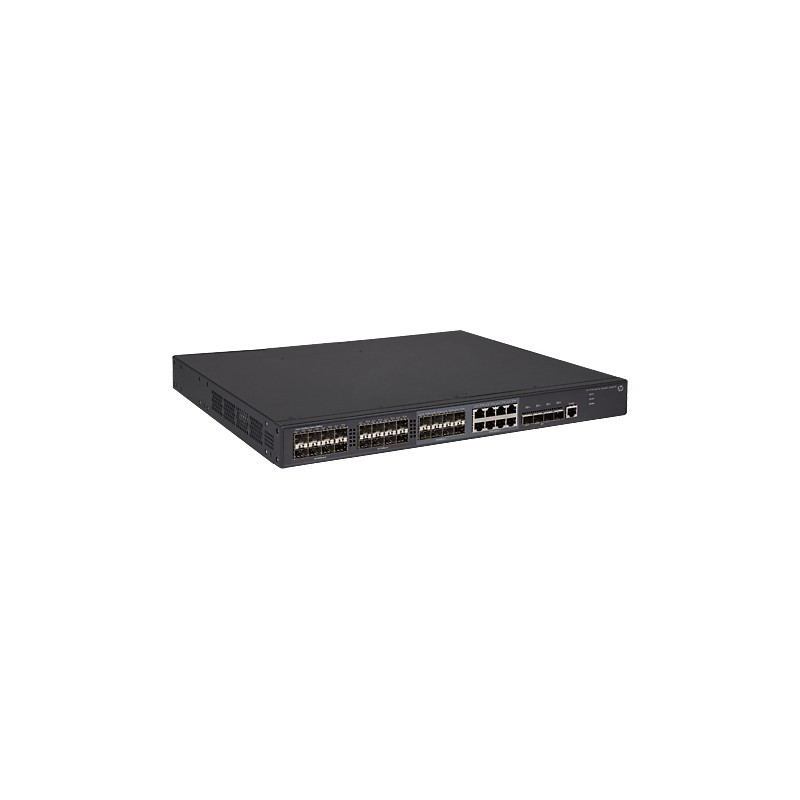

The HP 5130 EI Switch Series is comprised of Gigabit Ethernet switches that support static and RIP Layer 3 routing, diversified services, and IPv6 forwarding, as well as provide four 10-Gigabit Ethernet (10GbE) extended interfaces. Unique Intelligent Resilient Framework (IRF) technology creates a virtual fabric by managing several switches as one logical device, which increases network resilience, performance, and availability, while reducing operational complexity. These switches provide Gigabit Ethernet access and can be used at the edge of a network or to connect server clusters in data centers. High availability, simplified

management, and comprehensive security control policies are among the key features that distinguish this series.

10G support	No
AC input voltage	100-240 V
Colour of product	Black
Depth	360 mm
DHCP client	Yes
DHCP server	Yes
Flash memory	128 MB
Flow control support	Yes
Form factor	1U
Heat dissipation	204 BTU/h
Height	43.6 mm
Input current	5.0 A
Internal memory	1024 MB
Latency (10 Gbps)	1.5 µs
MAC address table	16384 entries
Memory type	SDRAM
Networking standards	IEEE 802.3,IEEE 802.3ab,IEEE 802.3u
Noise level	50.7 dB
Operating relative humidity (H-H)	10 - 90 %
Operating temperature (T-T)	0 - 45 °C
Packet buffer memory	1.5 MB
Power consumption (typical)	60 W
Power over Ethernet (PoE)	No
Power over Ethernet (PoE) support	No
Quality of Service (QoS) support	Yes
Rack mounting	Yes
Spanning tree protocol	Yes
Storage relative humidity (H-H)	5 - 95 %
Storage temperature (T-T)	-40 - 70 °C
Switch layer	L3
Switch type	Managed
Switching capacity	128 Gbit/s
Throughput	96 Mpps
Weight	8000 g
Width	440 mm
