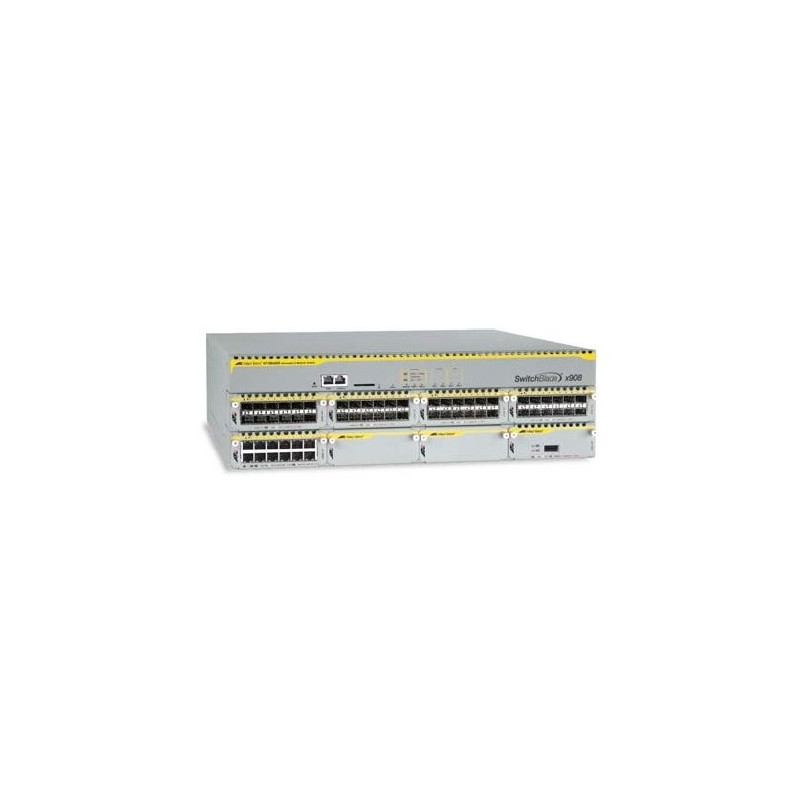

Allied Telesis 8 Slot Advanced Layer 3 Modular Switch

More Info
Details
Spec Sheet

The Allied Telesis SwitchBlade® x908 industry

leading modular switch incorporates eight highspeed

60Gbps expansion bays, delivering a new

generation of high performance. The SwitchBlade

x908 provides scalable and versatile switching

solutions for today’s Enterprise networks.

The highly configurable SwitchBlade x908 3RU

modular switch combines an advanced IPv4 L3

feature set and comprehensive IPv6 routing

features, with wire-speed IPv6 hardware capability,

future proofing the network.

Featuring dual hot-swap PSUs, an advanced QoS

feature set,multicasting support, and LAN resiliency

support, the SwitchBlade x908 also provides

Service Provider capabilities such as a large L3

route table, and EPSR support.

Stacking between two units is supported via fixed

stacking connectors on the rear of the chassis,

providing 160Gbps of stacking bandwidth. Stacking

of more than two units is via expansion modules

(XEMs) on the front panel.

The SwitchBlade x908 incorporates the

AlliedWare Plus™ Operating System, using an

industry standard Command Line Interface (CLI),

facilitating effortless manageability.

Basic switching RJ-45 Ethernet ports quantity	64
Certification	UL, cUL,TUV RoHS
Dimensions (WxDxH)	440 x 456 x 132 mm
Electromagnetic compatibility	EN55022 class A, FCC class A,VCCI class A
Flash memory	64 MB
Form factor	3U
Full duplex	Yes
Internal memory	512 MB
MAC address table	16000 entries
Maximum data transfer rate	80 Gbit/s
Mean time between failures (MTBF)	150000 h
Memory type	DDR SDRAM SODIMM
Operating altitude	0 - 3050 m
Operating relative humidity (H-H)	5 - 80 %
Operating temperature (T-T)	0 - 40 °C
Operating temperature range (T-T)	0 - 40 °C
Power consumption (typical)	510 W
Power over Ethernet (PoE)	No
Power over Ethernet (PoE) support	No
Power requirements	100-240V@47-63Hz; 36-72V
Power supply type	AC/DC
Safety	UL60950-1, CAN/CSA-C22.2 No. 60950-1-03, EN60950-1, EN60825-1, AS/NZS 60950
Source data-sheet	Icecat.biz
Storage relative humidity (H-H)	5 - 95 %
Storage relative humidity range	5 - 95 %
Storage temperature (T-T)	-30 - 70 °C
Switch type	Unmanaged
Switching capacity	640 Gbit/s
Weight	14320 g
