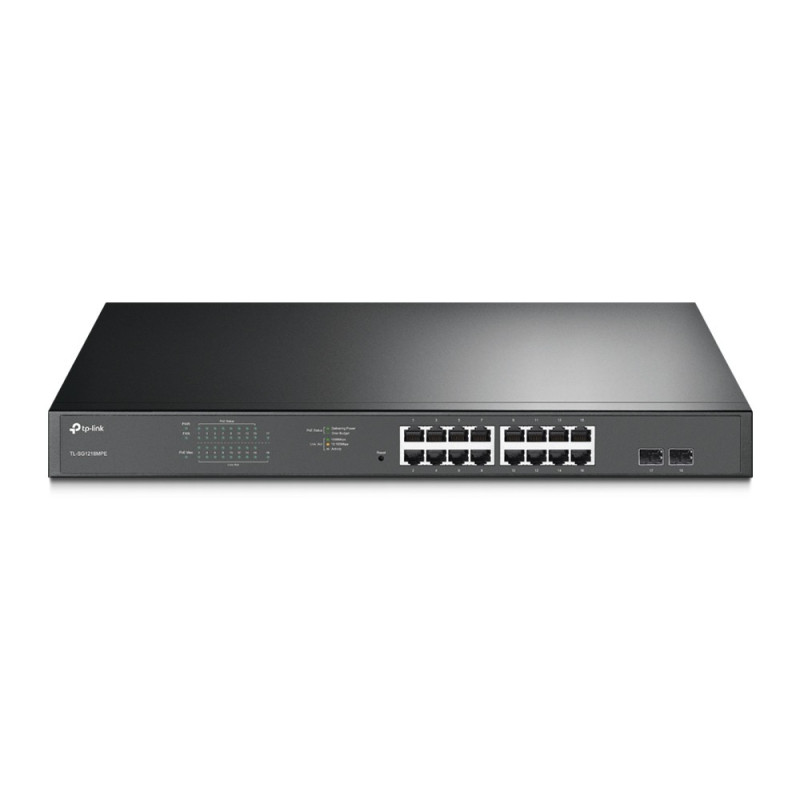

16 10/100/1000Mbps RJ45 POE+ Ports Switch
PoE power budget is up to 192W, making it ideal for small to medium business surveillance systems
Port Priority is able to guarantee the quality of sensitive application like video monitor
Intelligent power management can protect the switch from overload
QoS is for smooth internet-surfing experience and IGMP Snooping is capable of optimizing traffic for IPTV.

Ideal for Surveillance
TL-SG1218MPE complies with the 802.3af/at PoE+ standard, supporting up to 30W power supply on each PoE port. The total high PoE power budget is up to 192W for the 16 PoE ports, making it ideal for small to medium business surveillance systems.

Intelligent Power Management
When total power consumption excels 192W, the intelligent power management will cut the lower priority port power off to ensure the high priority port’s power supply and protect the device from power overload operation.

QoS For Smooth Online Experience
Administrators can designate the priority of traffic based on QoS, for example, to ensure that voice and video applications remain clear and lag-free.

IGMP Snooping Traffic Optimization for IPTV
IGMP Snooping optimizes multimedia traffic delivery to ensure a better network experience especially for applications like IPTV.

Making Management Easy
TL-SG1218MPE offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG1218MPE offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS.

10G support	No
AC input frequency	50/60 Hz
AC input voltage	100 - 240 V
Basic switching RJ-45 Ethernet ports quantity	16
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Cable types supported	Cat3,Cat4,Cat5,Cat5e,Cat6
Cables included	AC
Certification	CE, FCC, RoHS
Copper ethernet cabling technology	10BASE-T,100BASE-TX,1000BASE-T
Depth	180 mm
Fiber ethernet cabling technology	1000BASE-X
Heat dissipation	741.15 BTU/h
Height	44 mm
MAC address table	8000 entries
Networking standards	IEEE 802.1Q,IEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3u,IEEE 802.3x
Number of VLANs	32
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 50 °C
Power over Ethernet (PoE)	Yes
Storage relative humidity (H-H)	5 - 90%
Storage temperature (T-T)	-40 - 70 °C
Switch type	Managed
Switching capacity	36 Gbit/s
Width	440 mm
