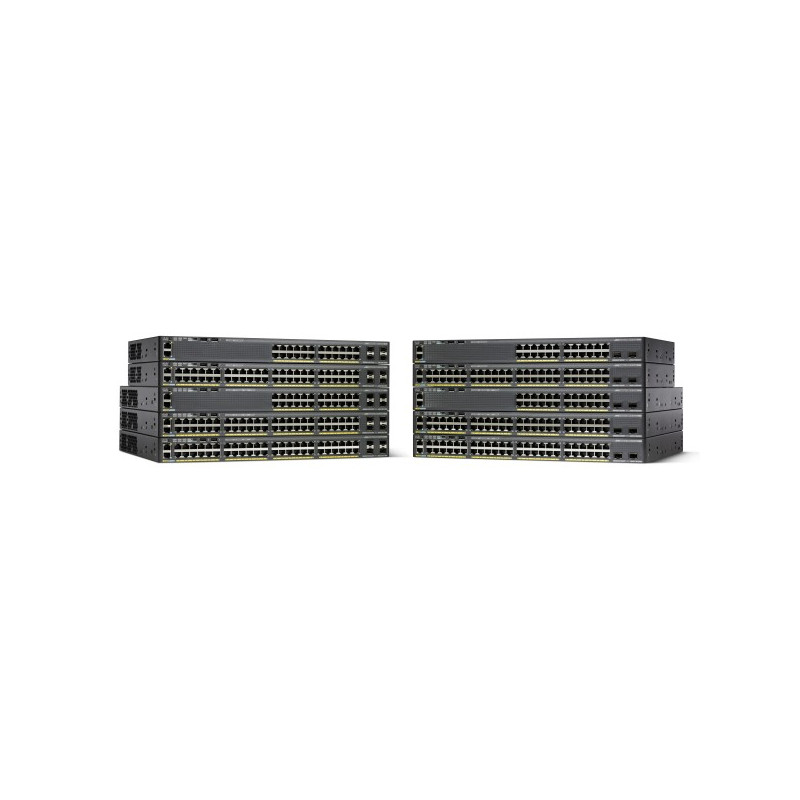

Cisco® Catalyst® 2960-X Series Switches are fixed-configuration, stackable Gigabit Ethernet switches that provide enterprise-class access for campus and branch applications (Figure 1). Designed for operational simplicity to lower total cost of ownership, they enable scalable, secure and energy-efficient business operations with intelligent services and a range of advanced Cisco IOS® Software features.

- 24 or 48 Gigabit Ethernet ports with line-rate forwarding performance.

- Gigabit Small Form-Factor Pluggable (SFP) or 10G SFP+ uplinks.

- FlexStack Plus for stacking of up to 8 switches with 80 Gbps of stack throughput (optional).

- Power over Ethernet Plus (PoE+) support with up to 740W of PoE budget.

- Reduced power consumption and advanced energy management features.

- USB and Ethernet management interfaces for simplified operations.

- Application visibility and capacity planning with integrated NetFlow-Lite.

- LAN Base or LAN Lite Cisco IOS® software features.

- Enhanced limited lifetime warranty (E-LLW) offering next-business-day hardware replacement.

10G support	Yes
AC input frequency	50/60 Hz
AC input voltage	100-240 V
Auto MDI/MDI-X	Yes
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Built-in processor	APM86392
Colour of product	Black
Depth	408 mm
DHCP server	Yes
Flash memory	128 MB
Full duplex	Yes
Height	44.5 mm
Internal memory	512 MB
LED indicators	Yes
Mean time between failures (MTBF)	322740 h
Memory type	DRAM
Networking standards	IEEE 802.1ab,IEEE 802.1D,IEEE 802.1p,IEEE 802.1Q,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3ae,IEEE 802.3af,IEEE 802.3ah,IEEE 802.3at,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
Noise level	48 dB
Non-operating altitude	0 - 4000 m
Number of power supply units	1
Number of VLANs	1023
Operating altitude	0 - 3000 m
Operating relative humidity (H-H)	10 - 95 %
Operating relative humidity range	10 - 95 %
Operating temperature (T-T)	-5 - 40 °C
Operating temperature range (T-T)	5 - 40 °C
Output power	640 W
Power consumption (typical)	43 W
Power LED	Yes
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) ports quantity	24
Power over Ethernet (PoE) support	Yes
Processor clock speed	600 MHz
Quality of Service (QoS) support	Yes
Rack mounting	Yes
Redundant power supply (RPS) support	Yes
Safety	UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950-1
Spanning tree protocol	Yes
Stackable	Yes
Storage relative humidity (H-H)	10 - 95 %
Storage relative humidity range	10 - 95 %
Storage temperature (T-T)	-25 - 70 °C
Storage temperature range (T-T)	-25 - 70 °C
Switch layer	L2
Switch type	Managed
Switching capacity	216 Gbit/s
USB 2.0 ports quantity	2
Web-based management	Yes
Weight	6200 g
Width	445 mm
