More Info
Details

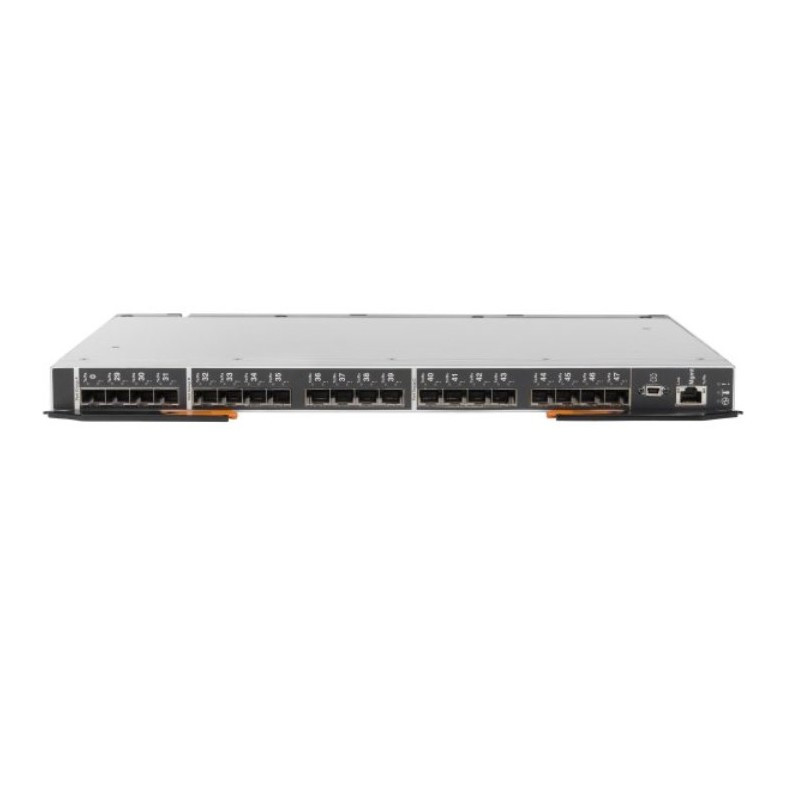

The IBM Flex System™ FC5022 16Gb SAN Scalable Switch is a Gen 5 Fibre Channel (FC) high-density, 48-port switch that operates at 16 and 8 Gbps FC speeds and is used in the IBM Flex System chassis. The switch provides 28 internal ports to compute nodes by way of the Flex midplane and 20 external SFP+ ports, as shown in Figure 1. The FC5022 SAN switch module delivers a scalable embedded option for IBM Flex System users connecting to 8 or 16 Gbps FC storage, deploying a new storage area network (SAN) or connecting to an existing SAN in their enterprise. The switch offers end-to-end 16 Gb with backwards compatibility to 8 Gb and 4 Gb to the SAN connectivity. Monitoring and management are simplified using end-to-end Brocade tools, such as Web Tools and the Brocade Network Advisor (BNA).

10G support	No
Basic switching RJ-45 Ethernet ports quantity	2
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Colour of product	Black
Depth	317 mm
Fiber optic connector	FC
Full duplex	Yes
Height	30 mm
LED indicators	Yes
Management protocols	SNMP v1
Networking standards	IEEE 802.3,IEEE 802.3ab,IEEE 802.3u
Operating relative humidity (H-H)	20 - 80 %
Operating temperature (T-T)	0 - 35 °C
Quick start guide	Yes
Security algorithms	SSH-2
Stackable	Yes
Storage relative humidity (H-H)	8 - 80 %
Storage temperature (T-T)	5 - 45 °C
Switch type	Managed
Switching capacity	16 Gbit/s
Weight	3200 g
Width	401 mm
