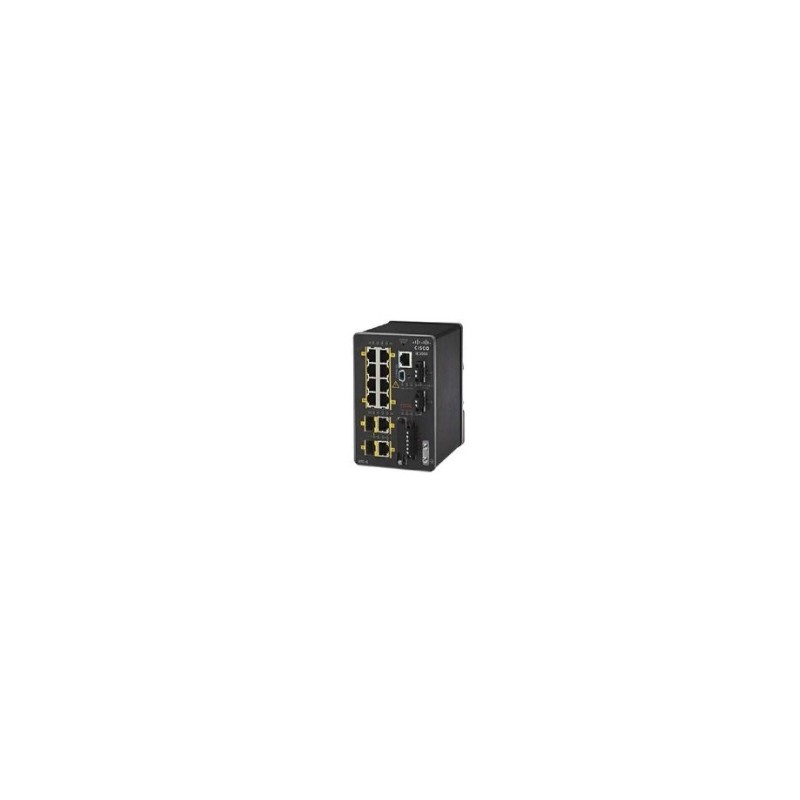

The Cisco® Industrial Ethernet 2000 (IE 2000) Series is a range of compact, industrially ruggedized access switches. IE 2000 series provide customers with ease of use, secure access, and industry leading convergence using Cisco Resilient Ethernet Protocol (REP). Multiple industries such as automotive, oil and gas, mining, transportation, and energy companies are all increasingly requiring IP based networks in their production areas. The newest IE 2000 additions have been designed to support access layer connectivity and to meet the increasing needs for security, voice, and video traffic across industrial networks.

Cisco IE 2000 Series are designed for low cost, low ports, and small sizes:

- 4, 8, or 16 10/100Base-T Ethernet ports fixed configurations with compact form factor

- 2x Gigabit Combo ports, SFP (100MB and 1G) or RJ45 uplink

- Dual-input DC power supply, alarm relays, DIN rail mount

- Conformal coating available

- Swappable SD flash card (for configuration storage), mini-USB connector, and RS-232 console port

- Industrial environmental compliance and certifications

- Industrial partner applications: EtherNet/IP and PROFINET

- Primary Applications and Features

- Easy deployment: Zero-touch discovery using DHCP, express setup, fast bootup time (60 sec) to help migrating to Ethernet environment without resistance

- Security: Dot1x, port security, and DHCP allow dynamic port-base authentication, Secure Shell (SSHv2), SNMPv3 provides encrypted administrator traffic during Telnet and SNMP sessions, TACACS+ and RADIUS authentication facilitate centralized control and restrict unauthorized users

- Resiliency: Flex links for fast recovery, Cisco REP protocol for fast convergence

- Manageability: Auto SmartPort, Web Device Manager, Telnet, HTTPS access, SNMP, CNA and CiscoWorks LAN Management Solution (LMS)

- Industrial automation protocols: Support for Common Industrial Protocol (CIP) and PROFINETv2 that allow integration with existing management platform from Rockwell, Siemens, and other industrial environments

10G support	No
AC input voltage	110-220 V
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Fast Ethernet (10/100)
Certification	FCC, IEC/EN 55022A, VCCI, AS/NZS CISPR 22, CISPR 11, CISPR 22, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-64, EN 61373, UL/CSA, CE, AS/NZ RCM, BSMI, KCC, ANATEL, RoHS
Colour of product	Black
DC-in jack	Yes
Depth	133.6 mm
DHCP client	Yes
DHCP server	Yes
Flash memory	64 MB
Full duplex	Yes
Height	127 mm
Internal memory	256 MB
MAC address filtering	Yes
MAC address table	8000 entries
Management protocols	SNMPv3
Mean time between failures (MTBF)	374052 h
Networking standards	IEEE 802.1D,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x
Non-operating altitude	0 - 4572 m
Number of VLANs	255
Operating altitude	0 - 4572 m
Operating relative humidity (H-H)	5 - 95 %
Operating temperature (T-T)	-40 - 70 °C
Packet buffer memory	2 MB
Power consumption (typical)	15 W
Power over Ethernet (PoE)	No
Quality of Service (QoS) support	Yes
Safety	UL 60950-1, CSA C22.2 No. 60950-1, EN 60950-1, CB IEC 60950-1, NOM NOM-019-SCF1
Security algorithms	FIPS 140-2,SSH-2
Spanning tree protocol	Yes
Storage relative humidity (H-H)	5 - 95 %
Storage temperature (T-T)	-40 - 85 °C
Switch layer	L2
Switch type	Managed
Throughput	6.5 mpps
USB 2.0 ports quantity	1
Web-based management	Yes
Weight	1560 g
Width	88.9 mm
