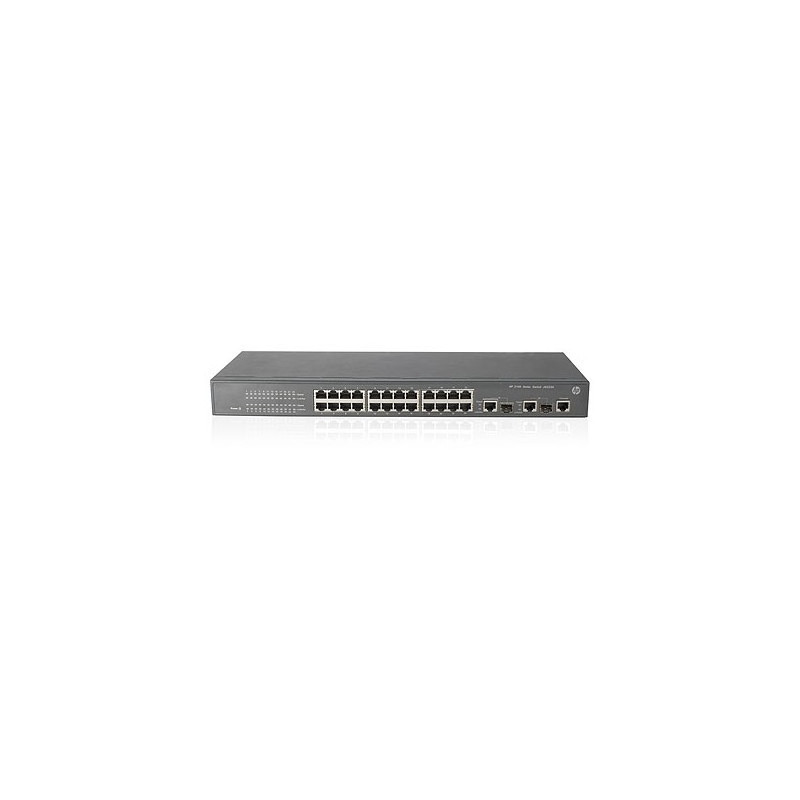

The HP 3100 SI Switch Series is a low-cost Fast Ethernet switch line that enables organizations to do more with less. Stackable and affordable, this series comprises intelligent, network-manageable Layer 2 Fast Ethernet switches that offer high performance, high port density, and easy installation. These switches provide 10/100 Mbps downlinks and Gigabit Ethernet uplinks, and offer link aggregation that expands bandwidth and enhances connection reliability. In enterprise networks, they can serve as access devices for 100 Mbps-to-desktop applications. In metropolitan area networks (MANs) or industry networks, they can connect end users or aggregate low-end switches through 100 Mbps electrical interfaces in the

downlink direction, converging at an IP switching center or a large-capacity Layer 3 switch in the uplink direction via a GbE interface or link aggregation.

10G support	No
AC input voltage	100-240 V
Auto MDI/MDI-X	Yes
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Fast Ethernet (10/100)
Colour of product	Grey
Depth	160 mm
Dimensions (WxDxH)	439.9 x 160 x 43.7 mm
Electromagnetic compatibility	FCC part 15 Class A; VCCI Class A; EN 55022 Class A; CISPR 22 Class A; ICES-003 Class A; ANSI C63.4 2003; ETSI EN 300 386 V1.3.3; AS/NZS CISPR22 Class A; EN 61000-3-2; EN 61000-3-3; EN 61000-4-2; EN 61000-4-3; EN 61000-4-4; EN 61000-4-5; EN 61000-4-6; EN
Flash memory	16 MB
Flow control support	Yes
Form factor	1U
Full duplex	Yes
Gigabit Ethernet (copper) ports quantity	2
Heat dissipation	44 BTU/h
Height	43.7 mm
I/O ports	2 dual-personality 10/100/1000 ports(IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T), Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only; 24 autosensing 10/100 ports(IEEE 802.3 Type 10BASE-T, IEEE 802.3u
Input frequency	50 - 60 Hz
Input voltage	100 - 240 V
Internal memory	128 MB
Latency	100 Mb Latency: < 6 µs; 1000 Mb Latency: < 5 µs
MAC address filtering	Yes
MAC address table	8192 entries
Management platform	IMC - Intelligent Management Center; command-line interface; Web browser; SNMP Manager
Memory type	B SDRAM
Mounting	Mounts in an EIA-standard 19 in. telco rack or equipment cabinet (hardware included)
Networking standards	IEEE 802.3,IEEE 802.3ab,IEEE 802.3u
Number of VLANs	4094
Operating relative humidity (H-H)	10 - 90 %
Operating relative humidity range	10 to 90 %
Operating temperature (T-T)	0 - 45 °C
Operating temperature range (T-T)	0 - 45 °C
Packet buffer memory	0.3 MB
Power consumption (typical)	13 W
Power over Ethernet (PoE)	No
Quality of Service (QoS) support	Yes
Rack mounting	Yes
Safety	UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1; EN 60950-1/A11; FDA 21 CFR Subchapter J; ROHS Compliance
Size	439.9 mm (17.32 ")
Stackable	Yes
Storage relative humidity (H-H)	5 - 95 %
Storage relative humidity range	5 to 95 %
Storage temperature (T-T)	-40 - 70 °C
Storage temperature range (T-T)	-40 - 70 °C
Switch layer	L2/L3
Switch type	Managed
Switching capacity	8.8 Gbit/s
Throughput	6.6 Mpps
Weight	3000 g
Width	439.9 mm
