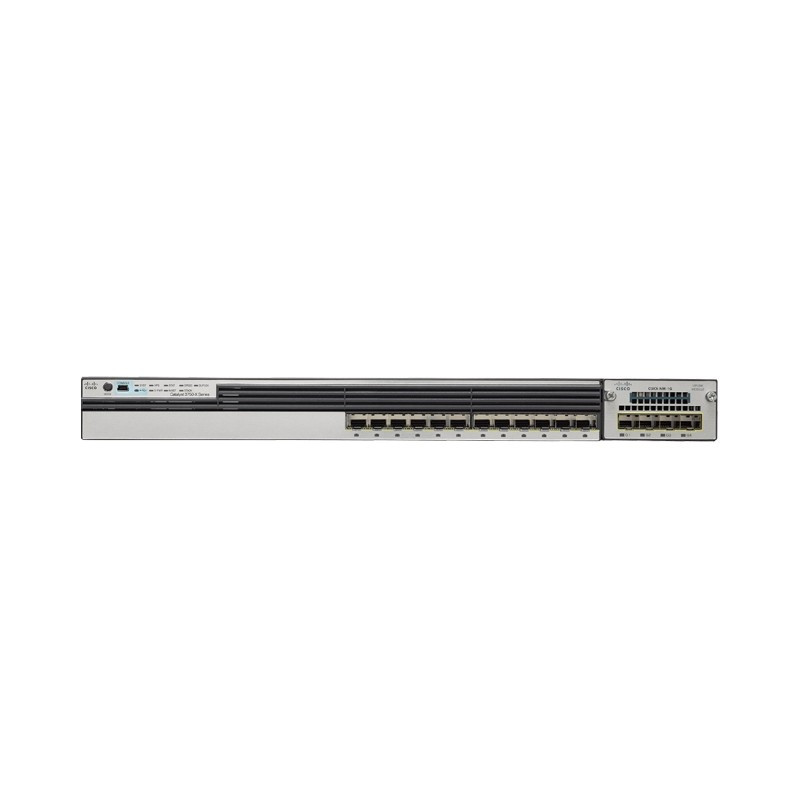

The Cisco®Catalyst® 3850 Series is the next generation of enterprise-class stackable Ethernet and Multigigabit Ethernet access and aggregation layer switches that provide full convergence between wired and wireless on a single platform. Cisco’s new Unified Access Data Plane (UADP) application-specific integrated circuit (ASIC) powers the switch and enables uniform wired-wireless policy enforcement, application visibility, flexibility and application optimization. This convergence is built on the resilience of the new and improved Cisco StackWise-480 technology. The Cisco Catalyst 3850 Series Switches support full IEEE 802.3at Power over Ethernet Plus (PoE+), Cisco Universal Power over Ethernet (Cisco UPOE), modular and field-replaceable network modules, RJ45 and fiber-based downlink interfaces, and redundant fans and power supplies. With speeds that reach 10Gbps, the Catalyst 3850 Multigigabit Ethernet Switches support current and next-generation wireless speeds and standards (including 802.11ac Wave 2) on existing cabling infrastructure.

10G support	No
AC input frequency	50/60 Hz
AC input voltage	115-230 V
Certification	47CFR, AS/NZS CISPR22, CISPR22, EN55022, ICES003, VCCI, EN61000-3-2, EN61000-3-3, KN22, KCC, CNS13438, EN55024, CISPR24, KN24
Colour of product	Grey
Copper ethernet cabling technology	1000BASE-T,100BASE-TX,10BASE-T
DC-in jack	Yes
Depth	449.5 mm
Energy Star certified	Yes
Form factor	1U
Heat dissipation	1207 BTU/h
Height	44.5 mm
Input current	4 - 2 A
LED indicators	Yes
MAC address table	32000 entries
Mean time between failures (MTBF)	315840 h
Networking standards	IEEE 802.1D,IEEE 802.1p,IEEE 802.1Q,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
Number of power supply units	1
Operating altitude	0 - 3000 m
Operating relative humidity (H-H)	5 - 90 %
Operating temperature (T-T)	-5 - 45 °C
Power over Ethernet (PoE)	No
Power over Ethernet (PoE) support	No
Quality of Service (QoS) support	Yes
Rack mounting	Yes
Safety	UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1
Security algorithms	802.1x RADIUS,SNMP,SSH
Spanning tree protocol	Yes
Stackable	Yes
Storage relative humidity (H-H)	5 - 90 %
Storage temperature (T-T)	-40 - 70 °C
Switch layer	L3
Switch type	Managed
Switching capacity	68 Gbit/s
Throughput	50.5 Mpps
Web-based management	Yes
Weight	7020 g
Width	444.5 mm
