More Info
Details
Spec Sheet

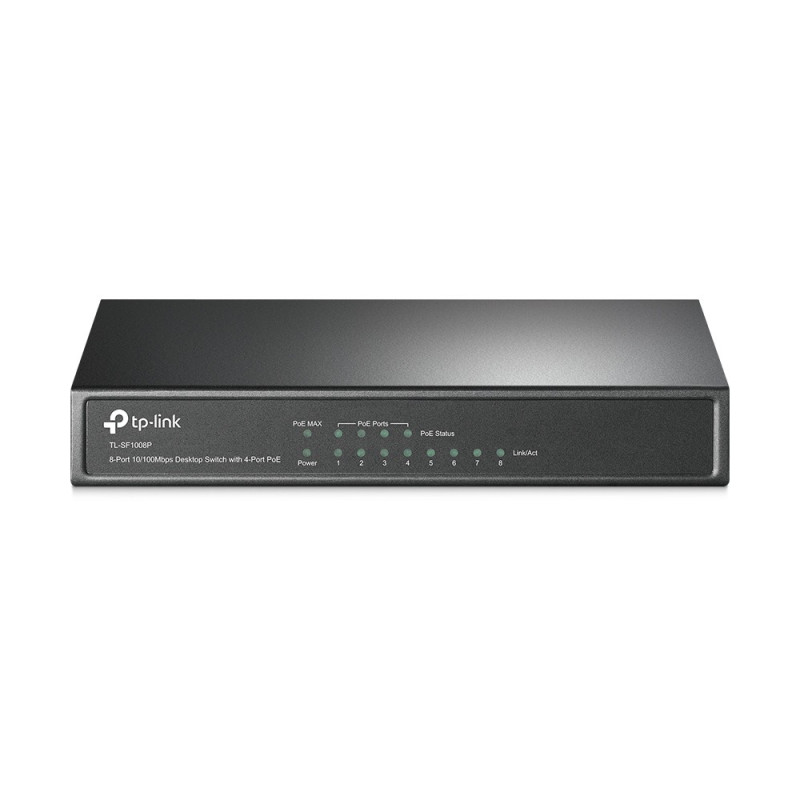

With four PoE ports, transfers data and power on one single cable
Working with IEEE 802.3af compliant PDs, expands home and office network
Supports PoE power up to 15.4W for each PoE port
Supports PoE power up to 57W for all PoE ports
Requires no configuration and installation

Power over Ethernet
4 of the 5 Auto-Negotiation RJ45 ports (Port 1 to Port 4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs).

Intelligent Power Management
When total power consumption excels 57W, the intelligent power management will cut the lower priority port power off to ensure the high priority port’s power supply and protect the device from power overload operation.

Sturdy Metal Casing
Sturdy, compact metal casing and shielded RJ45 ports, with desktop/wall-mounting design, to meet your needs in any environment. Besides, fanless design ensures quiet operation.

Bandwidth	1.6 Gbit/s
Basic switching RJ-45 Ethernet ports quantity	8
Certification	FCC, CE
Connectivity technology	Wired
Dimensions (WxDxH)	171 x 98 x 27 mm
MAC address table	1000 entries
Maximum data transfer rate	0.1 Gbit/s
Networking standards	IEEE 802.3
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Power consumption (typical)	53 W
Power over Ethernet (PoE)	Yes
Power supply type	48VDC / 1.25A
Storage relative humidity (H-H)	5 - 90%
Storage temperature (T-T)	-40 - 70 °C
Supported network protocols	CSMA/CD, TCP/IP, PPF
Switch type	Unmanaged
