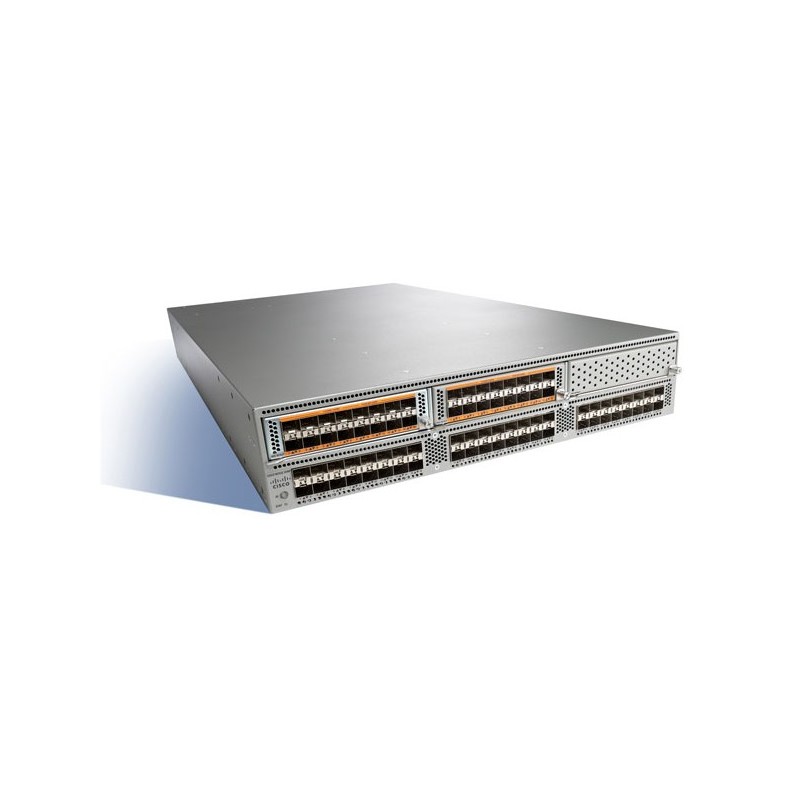

The Cisco Nexus 5500 platform is equipped with expansion modules that can be used to increase the number of 10 Gigabit Ethernet and FCoE ports or to connect to Fibre Channel SANs with 8/4/2/1-Gbps Fibre Channel switch ports, or both.

The Cisco Nexus 5548P and 5548UP supports one expansion module, and 5596UP supports three expansion modules from the following offerings

- Ethernet module that provides sixteen 1/10 Gigabit Ethernet and FCoE ports using the SFP+ interface

- Fibre Channel plus Ethernet module that provides eight 1/10 Gigabit Ethernet and FCoE ports using the SFP+ interface, and eight ports of 8/4/2/1-Gbps native Fibre Channel connectivity using the SFP+/SFP interface

- A unified port module that provides up to sixteen 1/10 Gigabit Ethernet and FCoE ports using the SFP+ interface or up to sixteen ports of 8/4/2/1-Gbps native Fibre Channel connectivity using the SFP+ and SFP interface. The use of 1/10 Gigabit Ethernet or 8/4/2/1-Gbps Fibre Channel on a port is mutually exclusive but selectable for any of the 16 physical ports per module.

10G support	Yes
AC input frequency	50/60 Hz
AC input voltage	100-240 V
Basic switching RJ-45 Ethernet ports quantity	48
Basic switching RJ-45 Ethernet ports type	10G Ethernet (100/1000/10000)
Certification	RoHS
Colour of product	Silver
Copper ethernet cabling technology	1000BASE-TX,100BASE-TX,10BASE-T
Depth	749 mm
DHCP client	Yes
DHCP server	Yes
Dimensions (WxDxH)	439 x 749 x 88 mm
Electromagnetic compatibility	47CFR, AS/NZS CISPR22, CISPR22, EN55022, ICES003, VCCI
Ethernet LAN (RJ-45) ports quantity	1
Flow control support	Yes
Form factor	2u
Heat dissipation	1331 BTU/h
Height	88 mm
Input frequency	50/60 Hz
Input voltage	100 - 240 V
LED indicators	Yes
MAC address table	32000 entries
Management protocols	SSHv2, Telnet, RADIUS, TACACS+, SNMP, RMON, RBAC, NTP
Maximum data transfer rate	1920 Gbit/s
Networking standards	IEEE 802.1D,IEEE 802.1Q,IEEE 802.1Qaz,IEEE 802.1Qbb,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.3,IEEE 802.3ad,IEEE 802.3ae,IEEE 802.3u,IEEE 802.3x
Non-operating altitude	0 - 300 m
Number of power supply units	2
Operating altitude	0 - 3000 m
Operating relative humidity (H-H)	5 - 95 %
Operating relative humidity range	0 - 40 %
Operating temperature (T-T)	0 - 40 °C
Ports quantity	48
Power consumption (typical)	680 W
Power over Ethernet (PoE)	No
Quality of Service (QoS) support	Yes
Rack mounting	Yes
Safety	UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, AS/NZS 609, GB49430-1
Security algorithms	802.1x RADIUS,AES
Source data-sheet	Icecat.biz
Spanning tree protocol	Yes
Stackable	No
Storage relative humidity range	5 - 95 %
Storage temperature (T-T)	-40 - 70 °C
Storage temperature range (T-T)	-40 - 70 °C
Switch layer	L2/L3
Switch type	Managed
Switching protocols	EIGRP, OSPFv2, BGP, HSRP, VRRP, PIMv2, MSDP, IGMPv2/v3
Weight	21550 g
Width	439 mm
