More Info
Details

The HP 3800 Switch Series is a family of fully managed Gigabit Ethernet switches. There are a total of nine switch models—a 24-port switch, a 48-port switch, a 24-port PoE+ switch, a 48-port PoE+ switch

with either SFP+ or 10GBASE-T uplinks, and a 24-portSFP switch with 2 SFP+ uplinks. HP 3800 Series Switches utilize the latest HP ProVision ASIC technology and combine the latest advances in hardware engineering to deliver one of the most resilient and energy-efficient switches in the industry.

The 3800 series implements meshed stacking technology to deliver chassis-like resiliency in a flexible stackable form factor.

10G support	Yes
Authentication method	IEEE 802.1X, RADIUS, MAC
Auto MDI/MDI-X	Yes
Basic switching RJ-45 Ethernet ports quantity	24
Built-in processor	HP ProVision ASIC/ARM 350 Mhz & Freescale PowerPC 1200 MHz
Certification	FCC Class A; VCCI Class A; EN 55022/CISPR 22 Class A 80 PLUS GOLD EN 55024, CISPR 24, IEC 61000-4-2/3/4/5/6/8/11, IEC 61000-3-2/3, EN 61000-3-2/3
Colour of product	Grey
Connectivity technology	Wired
Copper ethernet cabling technology	1000BASE-T,100BASE-TX,10BASE-T
DHCP client	Yes
DHCP server	Yes
Diagnostics	LLDP
Dimensions (WxDxH)	467.4 x 442.7 x 43.2 mm
Ethernet LAN (RJ-45) ports quantity	24
Firmware upgradeable	Yes
Flash memory	4096 MB
Form factor	19"
Full duplex	Yes
Gigabit Ethernet (copper) ports quantity	24
Heat dissipation	434 BTU/h
Input current	6 - 3 A
Input frequency	50 - 60 Hz
Input voltage	100 - 240 V
Installed ports	26
Internal memory	2048 MB
Latency	1.9µs
MAC address table	65500 entries
Management platform	SNMP, Telnet, Web
Management protocols	SNMP v3
Maximum data transfer rate	10000 Gbit/s
Memory type	SDRAM
MIB support	Yes
Mounting	1U
Networking features	Gigabit Ethernet, 10G Ethernet
Networking standards	IEEE 802.1ab,IEEE 802.1D,IEEE 802.1p,IEEE 802.1w,IEEE 802.3,IEEE 802.3ab,IEEE 802.3az,IEEE 802.3u
Noise level	36 dB
Number of power supply units	1
Number of VLANs	2048
Packet buffer memory	18 MB
Ports quantity	26
Power consumption (typical)	127 W
Power over Ethernet (PoE)	No
Power over Ethernet (PoE) support	No
Power supply	400 W
Power supply type	HP X311
Quality of Service (QoS) support	Yes
Rack mounting	Yes
Redundant power supply (RPS) support	Yes
Safety	EN 60950/IEC 60950, UL 60950, CAN/CSA 22.2 No. 60950, EN 60825
Security algorithms	802.1x RADIUS,SSH,SSL/TLS
Security algorithms supported	802.1x RADIUS, SSH, SSL/TLS
Security features	CLI, GUI, MIB
Source data-sheet	Icecat.biz
Spanning tree protocol	Yes
Stackable	Yes
Supported data transfer rates	10/100/1000 Mbps
Switch layer	L3
Switch type	Managed
Switching capacity	88 Gbit/s
Throughput	65400000 pps Mpps
Web-based management	Yes
Weight	6920 g
Wi-Fi	No
Wireless LAN connection	No

Similar products

TP-LINK 8-port 10/100 Unmanaged PoE Switch
TP-LINK TL-SF1005D
TP-LINK 8-Port 10/100Mbps Desktop Switch
TP-LINK TL-SG1008
TP-LINK TL-SM311LS

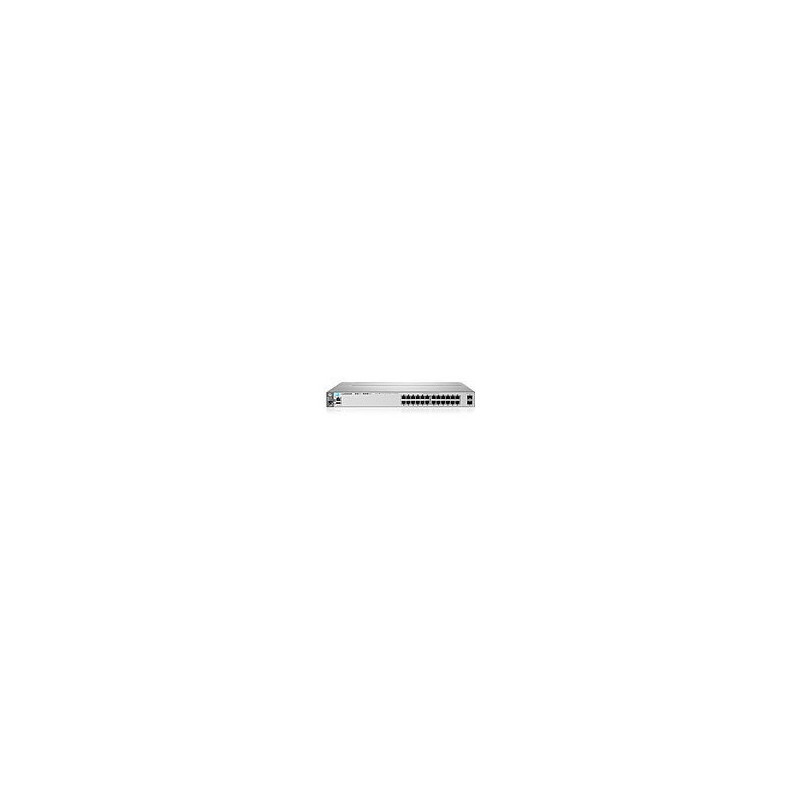

Hewlett Packard Enterprise 3800-24G-2SFP+

Managed, 24 x RJ-45, 10/100/1000 Mbps, 2 x SFP+ 1000/10000 Mbps, 1 x RJ-45 Console, HP ProVision ASIC/ARM 350 MHz, Freescale PowerPC 1200 MHz, 4GB Flash, Buffer 18 MB, 2GB SDRAM, RADIUS/TACACS+, SSHv2, SSL, 48.26 cm (19 ") , 127W, 6920g

Reference: J9575A

Stock Due 01-06-2025

£4,016.17

£3,346.81 Ex VAT.
