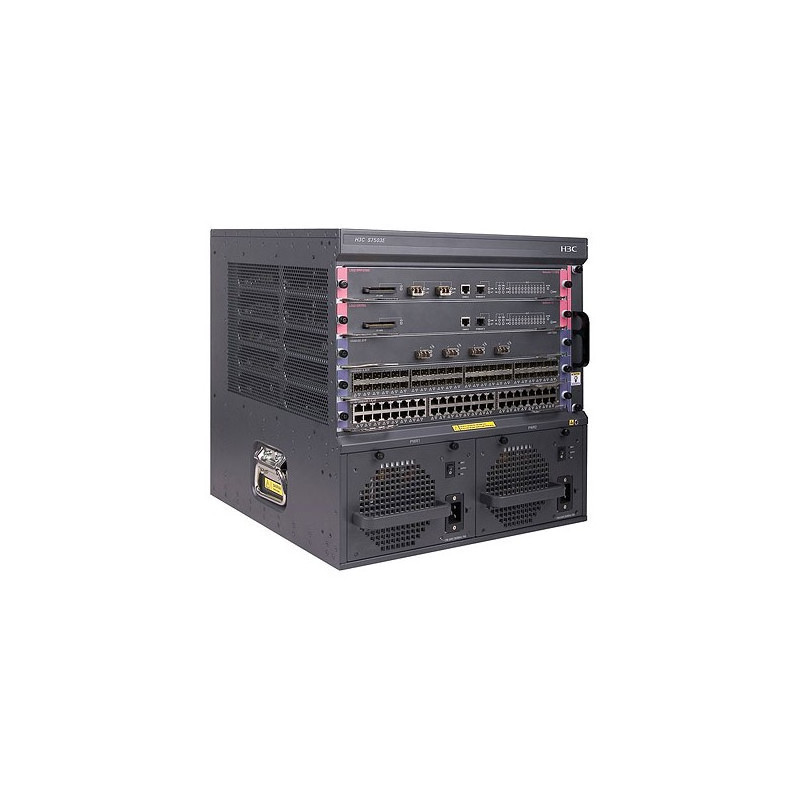

The HP 7500 Switch Series is a versatile modular switch designed to meet the evolving needs of integrated services networks. It can be deployed at the enterprise LAN core, aggregation layer and wiring closet edge and offers 40GbE connectivity, cost-effective wire-speed 10GbE ports, high density PoE/PoE+, advanced functionality with service modules and BYOD-ready features with the wired-WLAN module.

With HP Intelligent Resilient Fabric (IRF) technology, the HP 7500 Switch Series can be virtualized across four chassis with a single management interface—enabling flatter, more agile networks.

Depth	420 mm
Dimensions (WxDxH)	436 x 420 x 441 mm
Electromagnetic compatibility	VCCI Class A; EN 55022 Class A; ICES-003 Class A; ANSI C63.4 2003; AS/NZS CISPR 22 Class A; EN 61000-3-2:2006; EN 61000-3-3:1995 +A1:2001+A2:2005; EMC Directive 2004/108/EC; FCC (CFR 47, Part 15) Class A
Fan trays	1 x JD212A
Form factor	10U height
Height	441 mm
I/O ports	(3) I/O module slots\nSupports a maximum of 28 10GbE ports or 144 autosensing 10/100/1000 ports or 144 SFP ports or 12 40GbE ports, or a combination
Input current	16/50 A
Input frequency	50 / 60 Hz
Input voltage	100-120/200-240 VAC; -48 to -60 VDC (depending on power supply chosen)
MAC address table	512000 entries
Management platform	IMC - Intelligent Management Center
Mounting	Mounts in an EIA-standard 19 in. rack or other equipment cabinet (hardware included); horizontal surface mounting only
Operating temperature range (T-T)	0 - 45 °C
Output power	1400 W
Power requirements	Based on a common power supply of 1400 W (AC/DC)
Rack capacity	9U
Safety	UL 60950-1; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1; EN 60950-1/A11
Size	436.1 mm (17.17 ")
Storage relative humidity range	5 to 95 %
Storage temperature range (T-T)	-40 - 70 °C
Switching capacity	1920 Gbit/s
Throughput	966
Weight	66680 g
Width	436 mm
