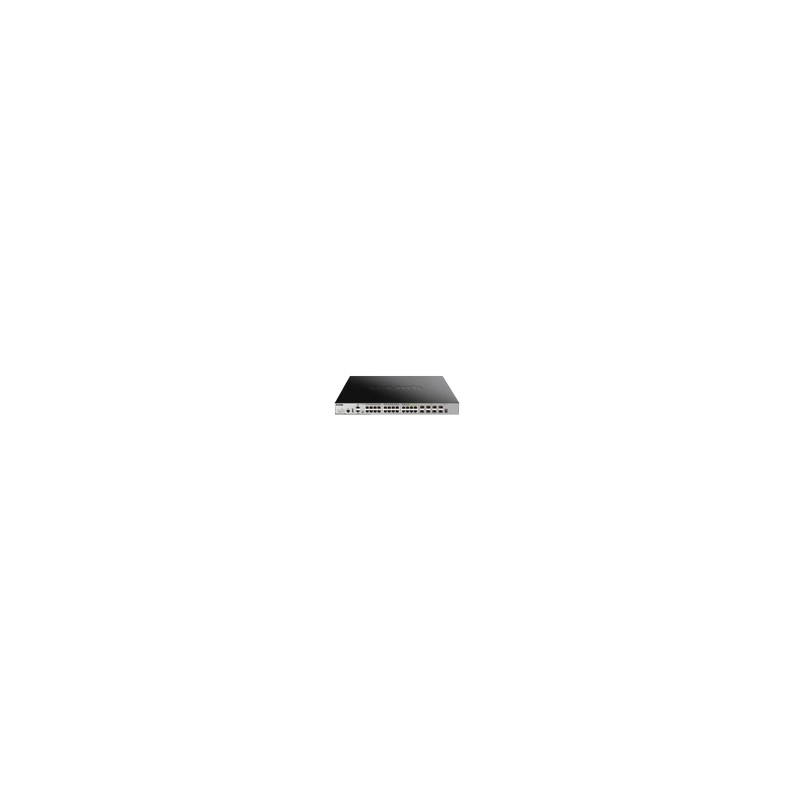

D-Link DGS-3630-28PC/SI
  • D-Link DGS-3630-28PC/SI
  • D-Link DGS-3630-28PC/SI
Outperforming the competition

The DGS-3630-28TC was benchmarked against a market leading competitor's device. It matched or exceeded the competitor's performance across all tests despite being significantly lower in price with a much lower power consumption.



Versatile Management

The DGS-3630 Series provides:

- Network Assistant Utility

- Industry-standard CLI

- Intuitive web-based management interface

Support for SNMP allows centralized management of a large number of devices and out-of-band management is available via a dedicated console port.

A mini-USB console port allows the DGS-3630 Series to be managed without any extra connectors, and a USB Type A port can be used to store logs, configuration, and firmware images.



High Availability and Flexibility

Includes stacking technology, which allows multiple switches to be combined to form a single physical or virtual stack.

Scale your network using just a stacking cable and without the need for stacking modules.

Increased redundancy over multiple physical units, simplifies management and provides a single IP address to manage all members in the stack.



Security, Performance & Availability

Robust set of QoS features helps ensure that critical network services such as Voice over IP and video conferencing are given high priority through the network.

The D-Link Safeguard Engine increases the switch’s reliability, serviceability, and availability by preventing malicious flooding traffic caused by worms or virus attacks.
10G supportYes
AC input frequency50/60 Hz
AC input voltage100 - 240 V
Basic switching RJ-45 Ethernet ports quantity20
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Colour of productBlack,Grey
Copper ethernet cabling technology10BASE-T,100BASE-TX,1000BASE-T
Depth380 mm
DHCP clientY
DHCP serverY
Electromagnetic compatibilityCE, FCC A, C-Tick, VCCI, BSMI, CCC
Fiber optic connectorSFP+
Flow control supportY
Full duplexY
Height44 mm
MAC address table68000 entries
Networking standardsIEEE 802.1AX,IEEE 802.1D,IEEE 802.1Qbb,IEEE 802.1ag,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3ah,IEEE 802.3at
Number of static routes512
Number of VLANs4000
Operating relative humidity (H-H)10 - 95 %
Operating temperature (T-T)-5 - 50 °C
Packet buffer memory4 MB
Power over Ethernet (PoE)Yes
Quality of Service (QoS) supportY
Redundant power supply (RPS) supportY
SafetycUL, CB, CE, CCC, BSMI
Security algorithms802.1x RADIUS,SNMP,SNMPv3,SSH,SSL/TLS
StackableYes
Storage relative humidity (H-H)5 - 95 %
Storage temperature (T-T)-40 - 70 °C
Switch layerL3
Switch typeManaged
Switching capacity128 Gbit/s
USB 2.0 ports quantity1
Ventilation fan(s)4
Web-based managementY
Width441 mm

Similar products

  • TP-LINK 8-port 10/100 Unmanaged PoE Switch
    TP-LINK 8-port 10/100 Unmanaged PoE Switch
  • TP-LINK TL-SF1005D
    TP-LINK TL-SF1005D
  • TP-LINK 8-Port 10/100Mbps Desktop Switch
    TP-LINK 8-Port 10/100Mbps Desktop Switch
  • TP-LINK TL-SG1008
    TP-LINK TL-SG1008
  • TP-LINK TL-SM311LS
    TP-LINK TL-SM311LS

D-Link DGS-3630-28PC/SI

20x 1G RJ-45, 4x 1000BASE-T SFP, 4x 10G SFP+, 128 Gbps, PoE, VLAN, 441 x 380 x 44 mm

DGS-3630-28PC/SI

Stock Due 01-07-2025

£2,771.71
£2,309.76 Ex VAT.

Require project pricing? - request a quoteNeed a trade account? - send us your details Are you a public sector organistion? - open a credit account
