More Info
Details

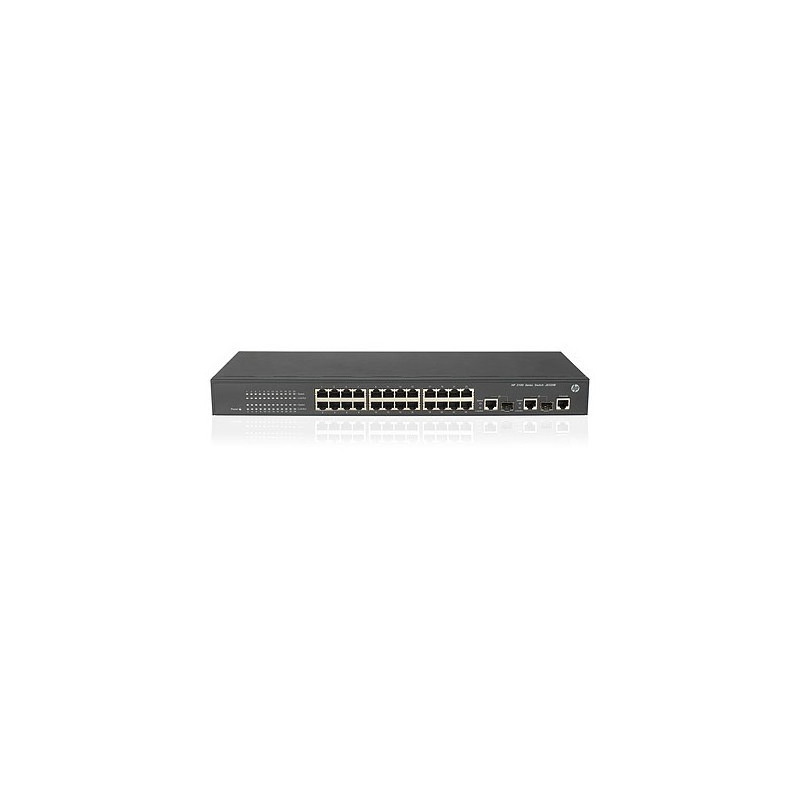

HP 3100 EI series switches are Layer 2 Ethernet switches designed for enterprise networks demanding high security and intelligence. They provide 10/100 Mbps downlink and 1000 Mbps uplink Ethernet ports, and serve as access devices for 100 Mpbs-to-desktop applications in enterprise networks. In metropolitan area networks or various industry networks, they connect end users or aggregate client devices with 10/100 Mbps connections, converging at a higher capacity switch with 1000 Mbps interfaces. Features include advanced Quality of Service (QoS), rate limiting, QinQ (virtual LAN [VLAN]/VPN), SSHv2, Multicast VLAN Registration (MVR), Virtual Cable Tester (VCT), HGMP V2, GARP VLAN Registration Protocol (GVRP), access control list (ACL), media access control (MAC)-IP-port binding, Endpoint Admission Defense, voice and protocol-based VLAN, Internet Group Management Protocol snooping.

10G support	No
AC input frequency	50/60 Hz
AC input voltage	100-240 V
Auto MDI/MDI-X	Yes
Basic switching RJ-45 Ethernet ports quantity	24
Certification	FCC part 15; VCCI; EN 55022; CISPR 22; ICES-003; ANSI C63.4 2003; ETSI EN 300 386 V1.3.3; AS/NZS CISPR22; EN 61000-3-2; EN 61000-3-3; EN 61000-4-2; EN 61000-4-3; EN 61000-4-4; EN 61000-4-5; EN 61000-4-6; EN 61000-4-11; EN 61000-3-2:2006; EN 61000-3-3:1995
Colour of product	Grey
Connectivity technology	Wired
DC-in jack	Yes
Depth	440 mm
Ethernet interface type	Gigabit Ethernet
Ethernet LAN	Yes
Ethernet LAN connection	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet LAN data transfer rates	10, 100, 1000 Mbit/s
Flash memory	16 MB
Flow control support	Yes
Full duplex	Yes
Heat dissipation	44 BTU/h
Height	43.6 mm
Internal memory	128 MB
Latency	6 µs
Maximum data transfer rate	1 Gbit/s
Memory type	SDRAM
Networking standards	IEEE 802.1D,IEEE 802.1p,IEEE 802.1Q,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ad,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
Operating relative humidity (H-H)	10 - 90 %
Operating relative humidity range	10 - 90 %
Operating temperature (T-T)	0 - 45 °C
Operating temperature range (T-T)	0 - 45 °C
Packet buffer memory	0.384 MB
Power consumption (typical)	13 W
Power LED	Yes
Power over Ethernet (PoE)	No
Power over Ethernet (PoE) support	No
Quality of Service (QoS) support	Yes
Rack mounting	Yes
Safety	UL 60950; NOM-019-SCFI; EN 60950: 2000, ZB and ZC; IEC 60950: 1999, 2000, all; AS/NZS 60950: 2000
Spanning tree protocol	Yes
Supported data transfer rates	10/100 Mbps
Switching capacity	8.8 Gbit/s
Throughput	6.5 mpps
User guide	Yes
Weight	3500 g
Wi-Fi	No
Width	160 mm
Wireless LAN connection	No
