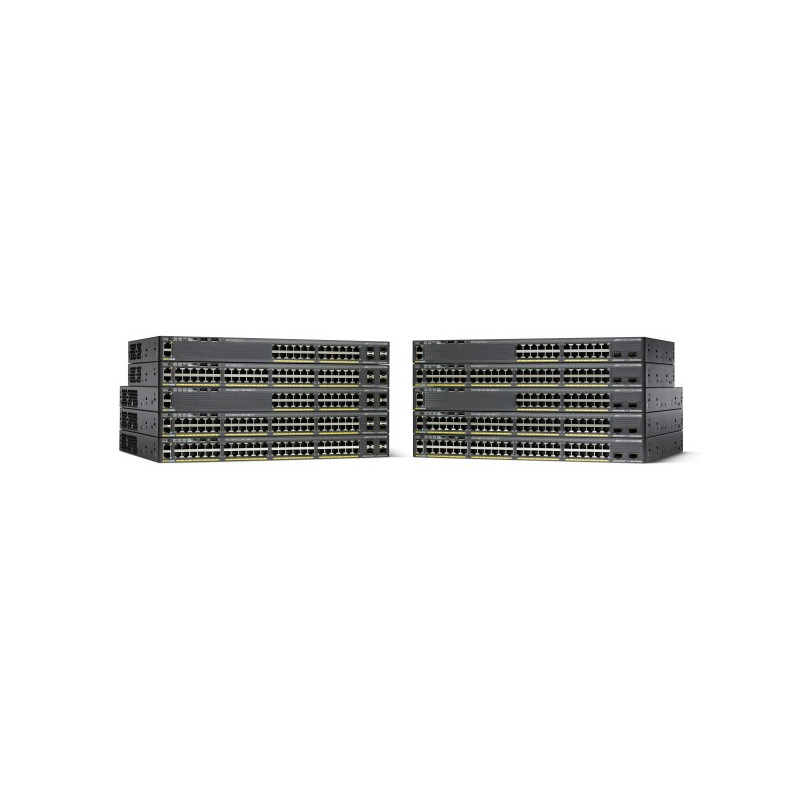

Cisco® Catalyst® 2960-X Series Switches are fixed-configuration, stackable Gigabit Ethernet switches that provide enterprise-class access for campus and branch applications (Figure 1). Designed for operational simplicity to lower total cost of ownership, they enable scalable, secure and energy-efficient business operations with intelligent services and a range of advanced Cisco IOS® Software features.

- 24 or 48 Gigabit Ethernet ports with line-rate forwarding performance.
- Gigabit Small Form-Factor Pluggable (SFP) or 10G SFP+ uplinks.
- FlexStack Plus for stacking of up to 8 switches with 80 Gbps of stack throughput (optional).
- Power over Ethernet Plus (PoE+) support with up to 740W of PoE budget.
- Reduced power consumption and advanced energy management features.
- USB and Ethernet management interfaces for simplified operations.
- Application visibility and capacity planning with integrated NetFlow-Lite.
- LAN Base or LAN Lite Cisco IOS® software features.
- Enhanced limited lifetime warranty (E-LLW) offering next-business-day hardware replacement.

AC input frequency	50/60 Hz
AC input voltage	100-240 V
Basic switching RJ-45 Ethernet ports quantity	48
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Built-in processor	APM86392
Colour of product	Black
Flash memory	128 MB
Height	45 mm
Internal memory	512 MB
LED indicators	Yes
Networking standards	IEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Noise level	57 dB
Number of VLANs	1023
Operating altitude	0 - 3000 m
Operating relative humidity range	10 - 95 %
Operating temperature range (T-T)	5 - 40 °C
Power consumption (typical)	60.9 W
Power LED	Yes
Power over Ethernet (PoE) support	Yes
Processor clock speed	600 MHz
Rack mounting	Yes
Safety	UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950-1
Storage relative humidity range	10 - 95 %
Storage temperature range (T-T)	-25 - 70 °C
Switch layer	L2
Switch type	Managed
Switching capacity	216 Gbit/s
USB 2.0 ports quantity	2
Weight	5.8 kg
Width	445 mm
