More Info
Details
Spec Sheet

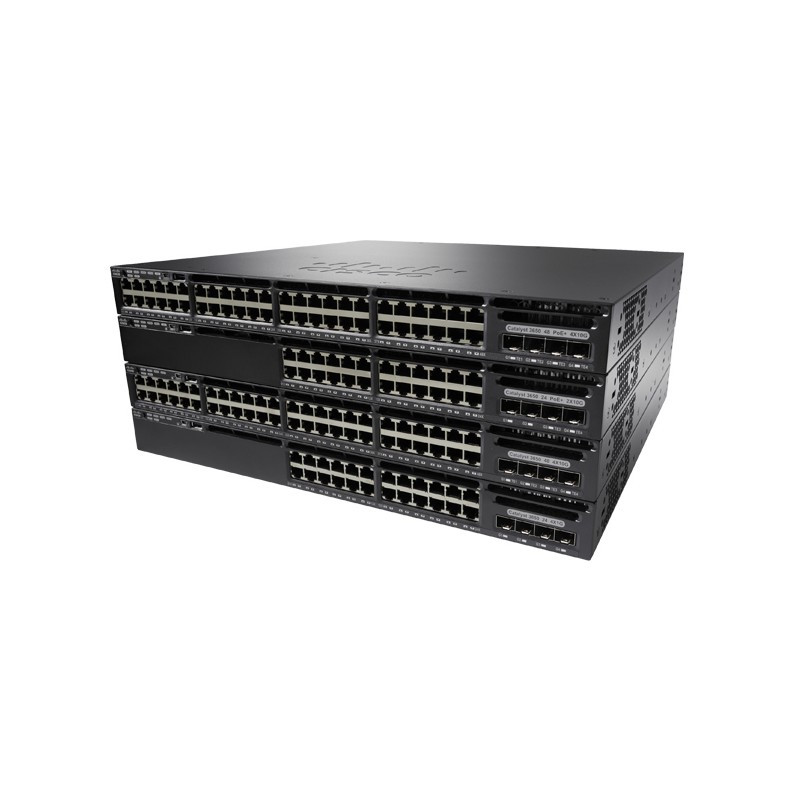

The Cisco Catalyst® 3650 Series is the next generation of enterprise-class standalone and stackable access-layer switches that provide the foundation for full convergence between wired and wireless on a single platform. The Cisco Catalyst 3650 is built on the advanced Cisco StackWise®-160, and takes advantage of the new Cisco® Unified Access Data Plane (UADP) application-specific integrated circuit (ASIC). This switch can enable uniform wired-wireless policy enforcement, application visibility, flexibility, application optimization, and superior resiliency. The Cisco Catalyst 3650 Series Switches support full IEEE 802.3at Power over Ethernet Plus (PoE+), and offer modular and field-replaceable redundant fans and power supplies. They can help you increase wireless productivity and reduce your TCO.

10G support	Yes
AC input frequency	50/60 Hz
AC input voltage	100-240 V
Auto MDI/MDI-X	Yes
Bandwidth	160 Gbit/s
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Certification	47CFR Part 15 (CFR 47) Class A (FCC Part 15 Class A)\nAS/NZS CISPR22 Class A\nCISPR22 Class A\nEN55022 Class A\nICES003 Class A\nVCCI Class A\nEN61000-3-2\nEN61000-3-3\nKN22 Class A\nKCC\nCNS13438 Class A\nEN55024\nCISPR24\nKN24
Colour of product	Black
Depth	448 mm
DHCP server	Yes
Flash memory	2000 MB
Form factor	1U
Full duplex	Yes
Height	44 mm
Internal memory	4096 MB
LED indicators	Yes
MAC address table	32000 entries
Mean time between failures (MTBF)	528280 h
Memory type	DRAM
Networking standards	IEEE 802.1D,IEEE 802.1p,IEEE 802.1Q,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
Noise level	48 dB
Non-operating altitude	0 - 5000 m
Number of power supply units	1
Number of VLANs	4094
Operating altitude	0 - 1500 m
Operating relative humidity (H-H)	5 - 96 %
Operating temperature (T-T)	-5 - 50 °C
Operating temperature range (T-T)	-5 - 50 °C
Power consumption (typical)	67.75 W
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) support	Yes
Quality of Service (QoS) support	Yes
Rack mounting	Yes
Redundant power supply (RPS) support	Yes
Safety	UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, GOST, NOM
Spanning tree protocol	Yes
Stackable	Yes
Storage temperature (T-T)	-40 - 70 °C
Storage temperature range (T-T)	-40 - 70 °C
Switch layer	L3
Switch type	Managed
Switching capacity	88 Gbit/s
Web-based management	Yes
Weight	7260 g
Width	445 mm
